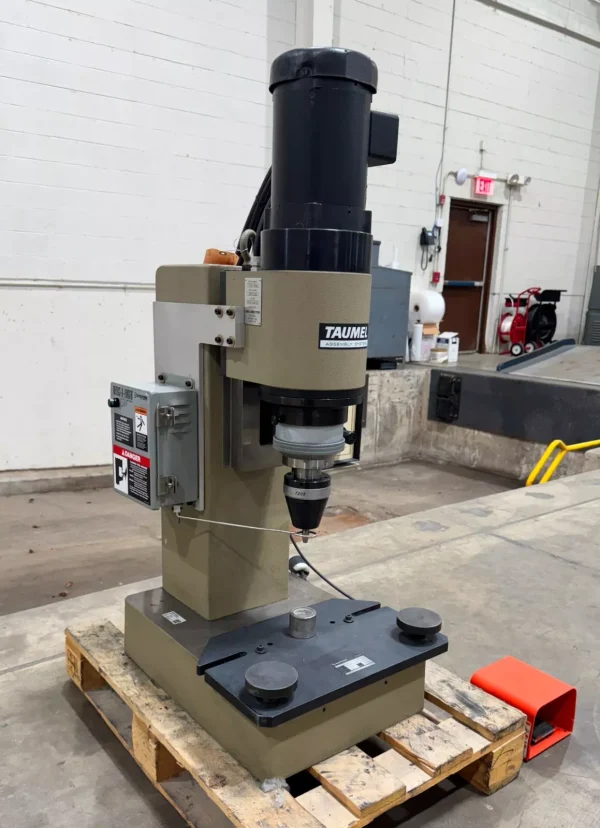

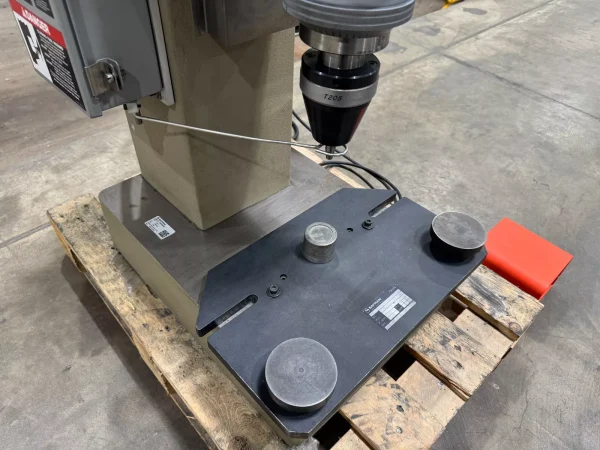

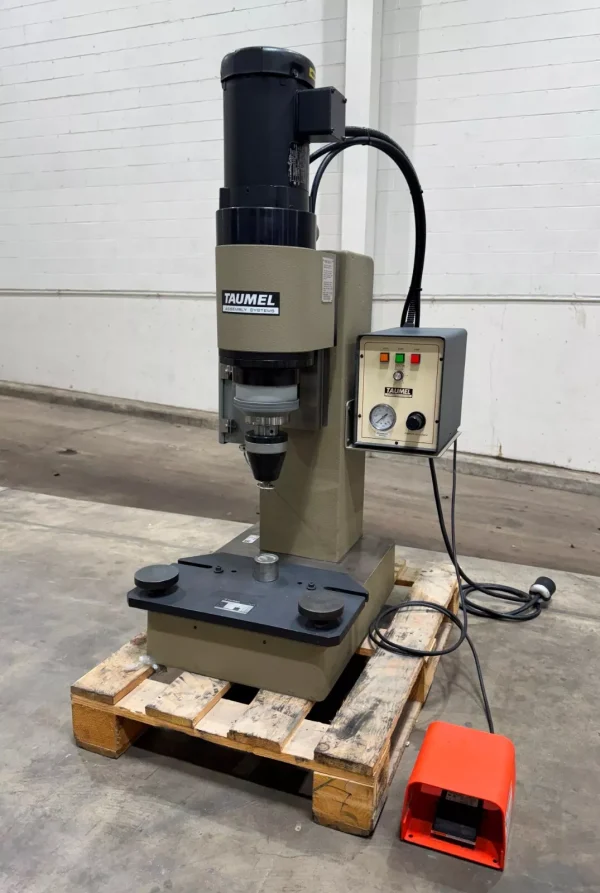

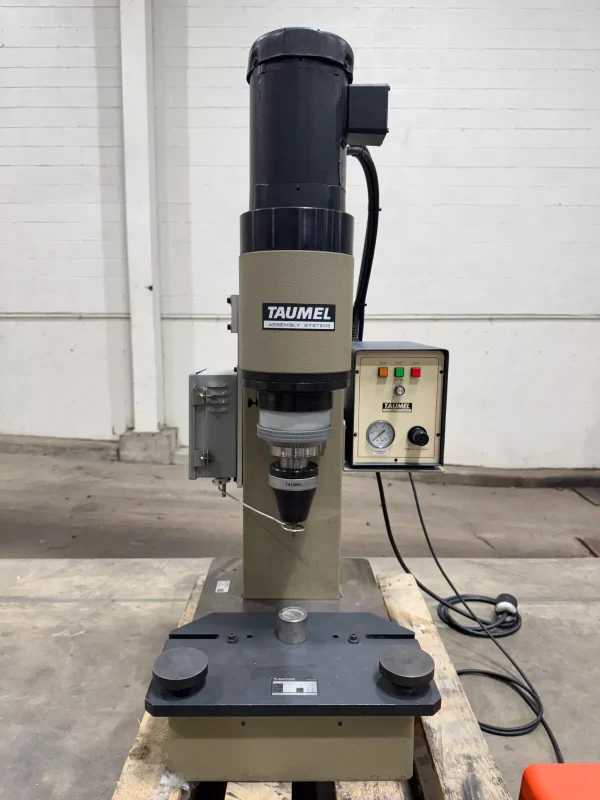

Taumel T-321 Bench-Top Orbital Head Forming Machine – Year 2018
SPECIFICATIONS:
Heading Capacity…………1/8″ to 5/16″ Ø (solid shank, mild steel)
Forming Force – Maximum…………2,800 Lbs.
Tool Stroke – Adjustable…………0 to 1.5″

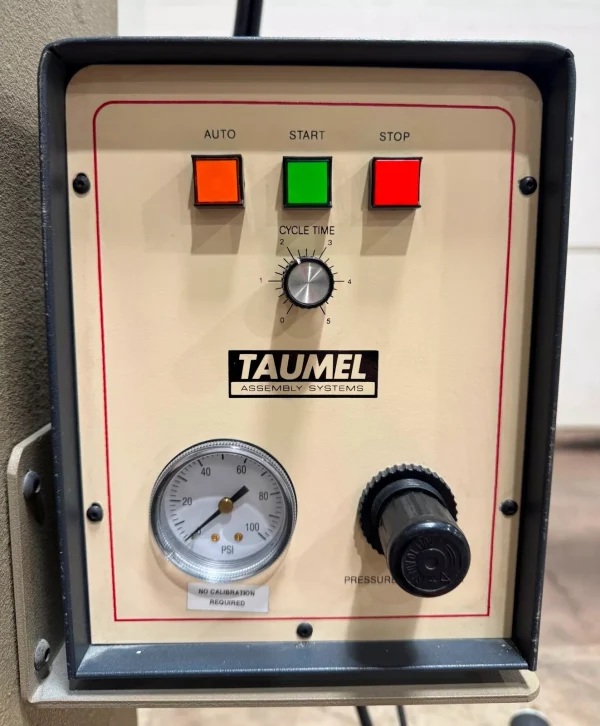

Forming Time Adjustment…………0.1 to 5 sec.
Compressed Air Requirement…………20 to 125 PSI
Compressed Air Consumption…………1.0 CFM
Electric Motor…………1/2 HP, 1140 RPM
Electrical Requirements…………230/460V/3Ph/50/60Hz
Machine Weight – Approximate…………450 Lbs.
Machine Dimensions – Approximate…………25″L x 25″W x 45″H
EQUIPPED WITH:

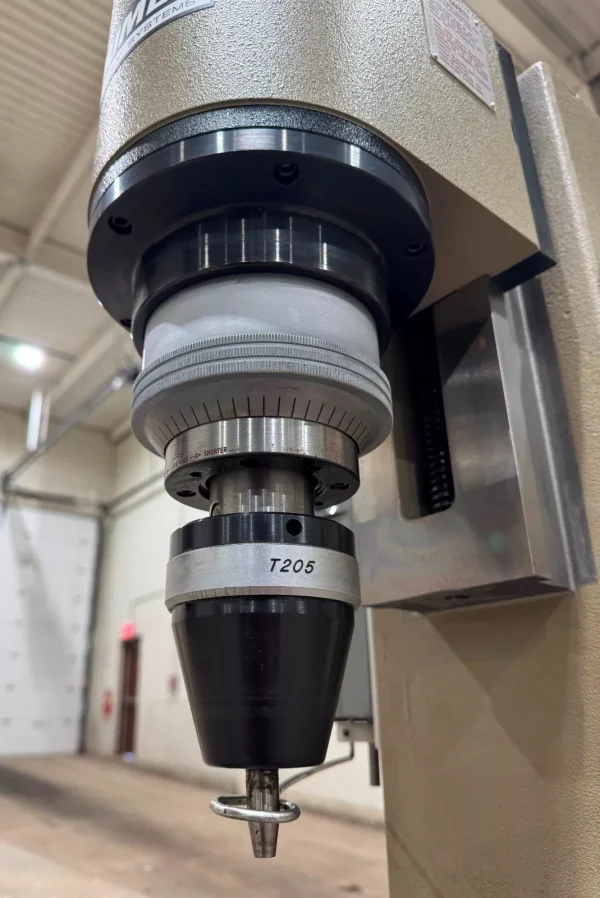

Taumel T-205 Head (Angle 5°)

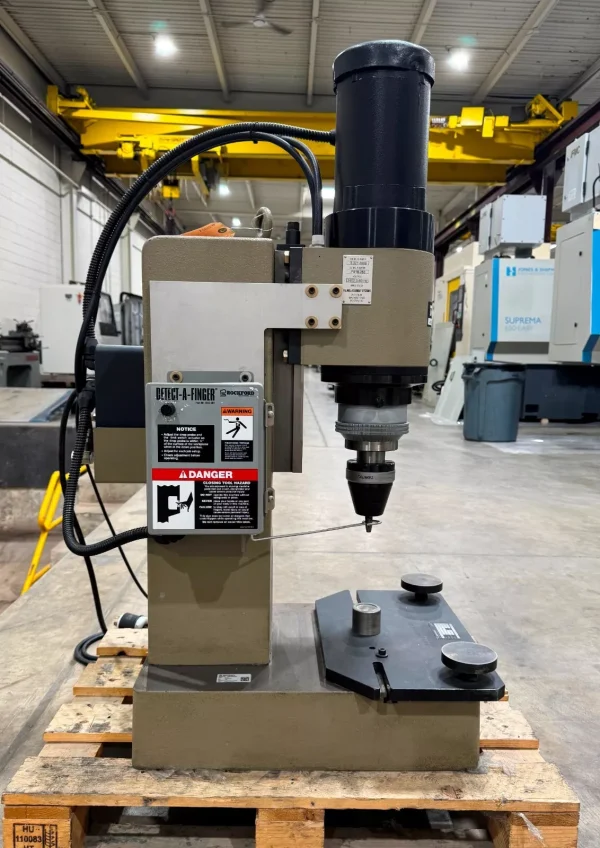

Rockford Systems Detect-A-Finger Drop Probe Safeguarding Device
Foot Pedal
Operator’s Manual
What is Orbital Head Forming System?
Manufacturer Catalogue Information about Taumel Orbital Forming System :
Taumel was the Pioneer: it was founded, as a New York Corporation, in May 1967 for the express purpose of introducing and marketing the patented Orbital Headforming System, invented and developed by Mr. G. Bodmer of BK-Taumel.
Orbital Headforming offers many benefits and advantages over any of the conventional assembly methods. It is a noiseless forming and fastening process which replaces traditional riveting, staking, spinning, hammering, pressing, peening, rolling, welding, upsetting and coldheading operations—all with one machine.
Today, Taumel Assembly Systems continues to supply a complete range of orbital forming machines, heads and tools for both regular assembly tasks and also for specialized custom purposes — all of them designed and precision-built in the U.S.A.
Taumel’s advanced PC-controlled assembly equipment is helping our customers to maintain consistency in processing while it also provides effective error-proofing. Taumel’s equipment can save both time and materials which leads to greater efficiency and productivity.
Taumel is looking forward to being deeply involved in the exciting future developments and advances in the manufacturing industries.
FUTURE POSITIVE
Taumel is excited and encouraged by the innovation and advances in technology and the quality of manufacturing which are occurring in the industries which we serve.
Increasingly stringent requirements, mandated by government, place additional burdens on manufacturers (especially those in the Automotive, Aeronautical and Medical fields) to meet higher standards in manufacturing while maintaining efficiency and increasing productivity.
Taumel is proud to have been chosen by so many major companies to help them meet these new challenges.
