Description

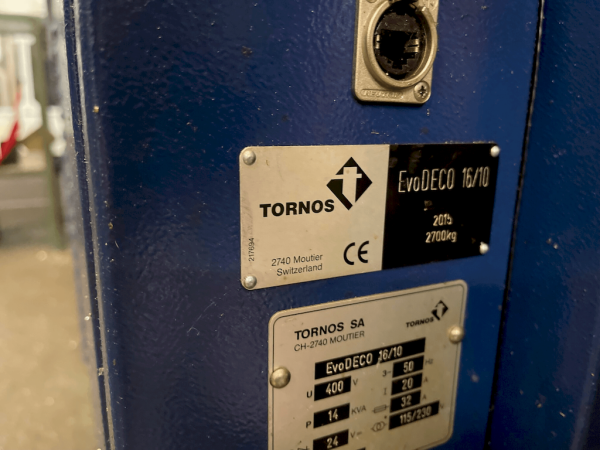

TORNOS EvoDECO 16/10 CNC Lathe – Year 2015
Manufacturer: TORNOS
Model: EvoDECO 16/10
Machine number: 12755/2015
Year of construction: 2015
Condition: excellent (used)
Functionality: fully functional
Operating hours: 38,000 h

CNC Tornos EvoDeco 16/10 automatic lathe with bar feeder in very good condition.
The range of processed bars from 3-16 mm, also hexagonal bars.
The machine has 10 numerically controlled axes and 4 independent tool systems for longitudinal and transverse work.
Independent tool cooling for both spindles,
high pressure oil pump.

TORNOS EVO DECO 16a

New automatic lathe from TORNOS SA. For bars Ø2-16mm
Introduced to the market in 2010
Based on the fundamental assumptions of the proven DECO concept

The machine offers the highest productivity achieved by:
4 independent tool systems Possibility to work with 4 tools at the same time high level of autonomy, without human intervention exceptional strength, precision and reliability
Other characteristic features that increase the efficiency and versatility of the EvoDeco 16a machine: Up to 27 tools, including up to 21 rotating tools (EvoDECO 16a)
4 independent motors for rotating tools and special instruments
Possibility to work without a guide sleeve electro-spindles with a synchronous motor Large volume of the processing zone Ergonomics designed with the operator in mind many integrated peripheral devices
rich optional equipment
high autonomy Easy to program thanks to TB-DECO
Multi-program – managing multiple programs

10+2 axes, 27 tools, simultaneous work of 4 tools.

The illustration below shows the kinematic diagram of the EVO DECO 16a automatic lathe

You can see
four independent tool systems
X1Y1Z1, X2Y2Z1, X3Z3, X4Y4Z4
Four rotary tool drives S2, S3, S5, S6, 10 axes: X1, X2, X3, X4, Y1, Y2, Y4, Z1, Z2, Z3, and 2 C axes: S1, S4

Electro-spindles with synchronous motor

They provide high power and torque on the main spindle and the sub-spindle 9.8 / 12kW – 12.1 / 15.8Nm. The main spindle and counter spindle are identical.

As a result of high power and flat torque characteristics, we gain Reduction of times for stopping, accelerating, positioning of spindles, e.g. accelerating the spindle from 0 to 8,000 rpm in only 0.45 seconds, and at the same time we gain reduction of noise and reduced maintenance workload.

Working without a guide sleeve:

The illustration below shows two machining configurations:

On top – with a guide sleeve
On the bottom without a guide sleeve

Machining without a guide sleeve, good for machining short workpieces whose length to diameter ratio is less than 3. The rod waste is short, min. 41 mm and approx. 100 mm shorter than when working with a guide sleeve.
It is possible to work with less precise rods, and therefore cheaper

Multi-Program.

Thanks to the ability to manage multiple programs, it is possible to produce different items sequentially from the same bar without the operator’s intervention. Programs are queued and executed one after another.

This option shortens machine downtime when producing very short series, because the program change is automatic without the operator’s involvement, who is not always at hand if he supervises the work of many machines.

TB-DECO software:

Enables simple intuitive programming outside the machine, checking programs and their optimization. The TB DECO ADV version ensures energy savings and less wear of the machine’s mechanisms
Below is an example of a program.

Peripheral and optional equipment

60bar, 120bar pump systems – used for deep drilling and for removing difficult chips.
Thread whirling devices – widely used in the production of parts for the medical industry
High-speed electrospindles – for micro-milling and micro-drilling at speeds up to 80,000 rpm.
Presetter – an optical device for setting tools outside the machine, which significantly shortens the time of changing the machine from one detail to another.

A device for making teeth using the hobbing method
And many others

Autonomy
The EvoDECO 16a machine uses devices that extend the time during which the machine works without the operator’s intervention.
Automatic central lubrication
Coolant pump with self-cleaning filter
Timer for heating the cooling oil
Heat exchanger that stabilizes the machine temperature
Automatic bar feeder with storage

Precision
Increased stiffness
Optimum machining efficiency
