Description

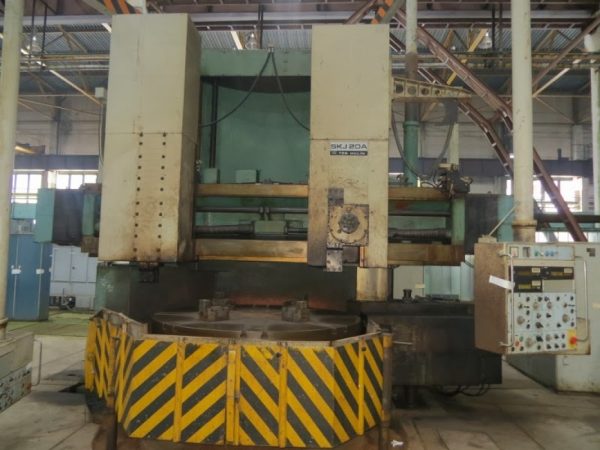

TOS Hulín SKJ 20A – Year 1986
Vertical turning lathe with Digital indication
Machine weight: 39,000 kg
Faceplate diameter 2000 mm
number of supports: 2 pcs.
Dimensions :
Height 6280 mm
width 6600 mm
length 4800 mm
Extras:
Right support with
turret head,
left and side – sliders.
Digital indication of NS 114.
Technical condition at the time of sale:
Defective rotary amplifier main drive-replacement is required.
Require replacement of cables and wires external piping:-machine control cabinets. Repair and adjustment of electrical parts. Not operated since 1994
The maximum dimensions of a workpiece
Height 1300 mm
Diameter of 2000 mm
Weight 15 000 kg
