Description

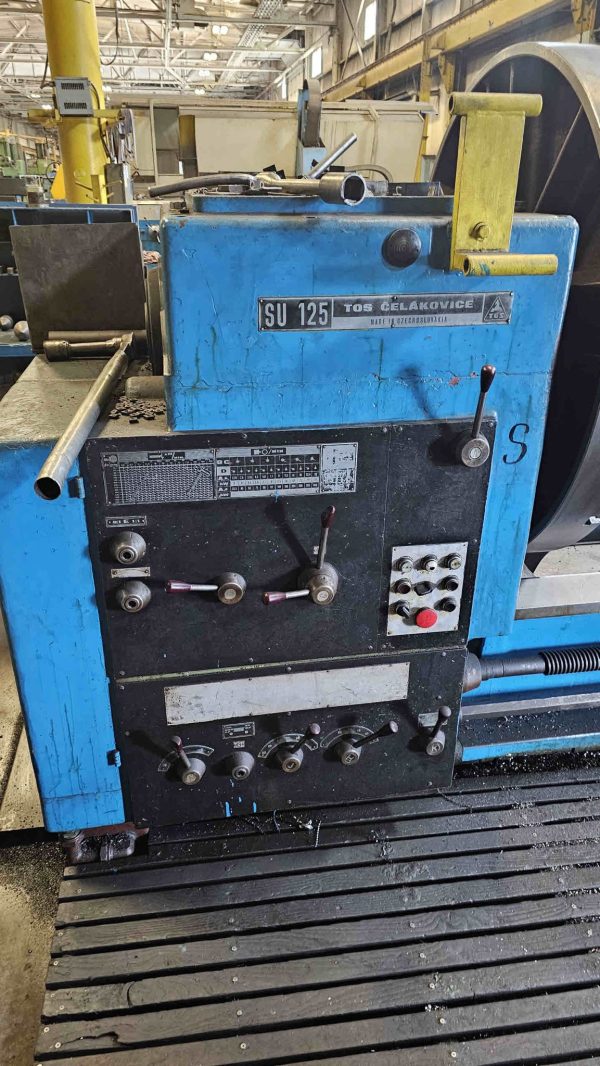

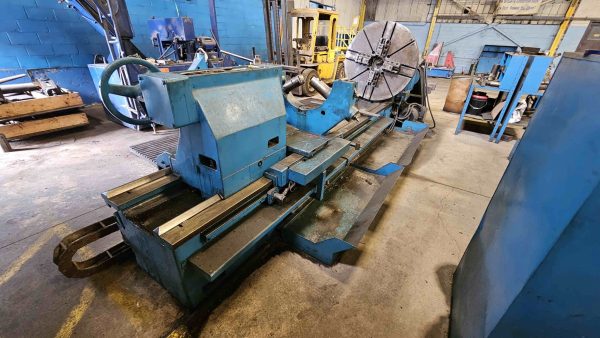

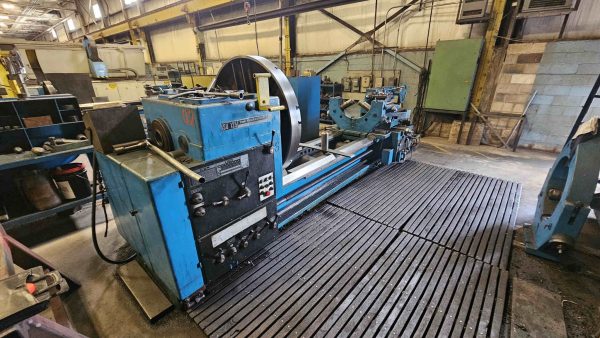

TOS SU-125 Heavy Duty Engine Lathe 3.2 Meters
Machine is in Excellent Condition & Ready For Inspection.
Specification:
Model………………SU-125
Swing Over Bed……49.2” (1250mm)
Swing Over Carriage…37”
Between Center………126”(3200mm)

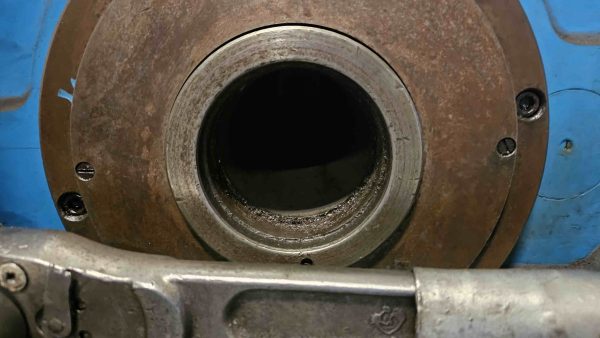

Spindle Bore…………3.75”
Chuck Diameter……49”
Width Of Bed………32”
Spindle Speeds (24)……………2.24 – 450 RPM
Main Motor…………30 HP
Electrics……380V/3PH/60HZ
Made In Czechoslovakia
Approximate Weight……………22,500 LBS
Approximate Overall Dimension……………………215”L x 74”W x 75”H
Equipped With:

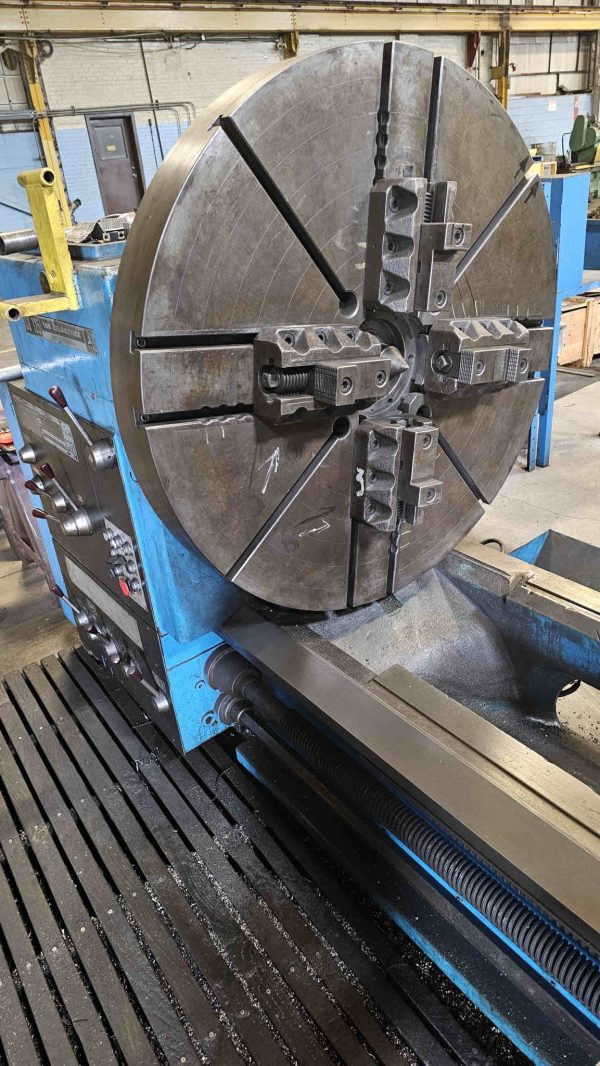

49” Four Jaw Chuck,
25” Steady Rest,
Power Rapid Feeds,

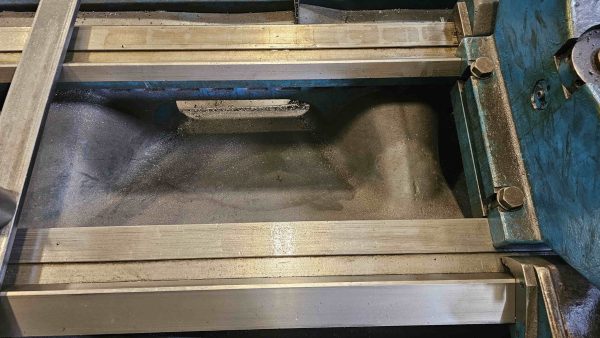

Harden Ways,
Inch/Metric Threading,

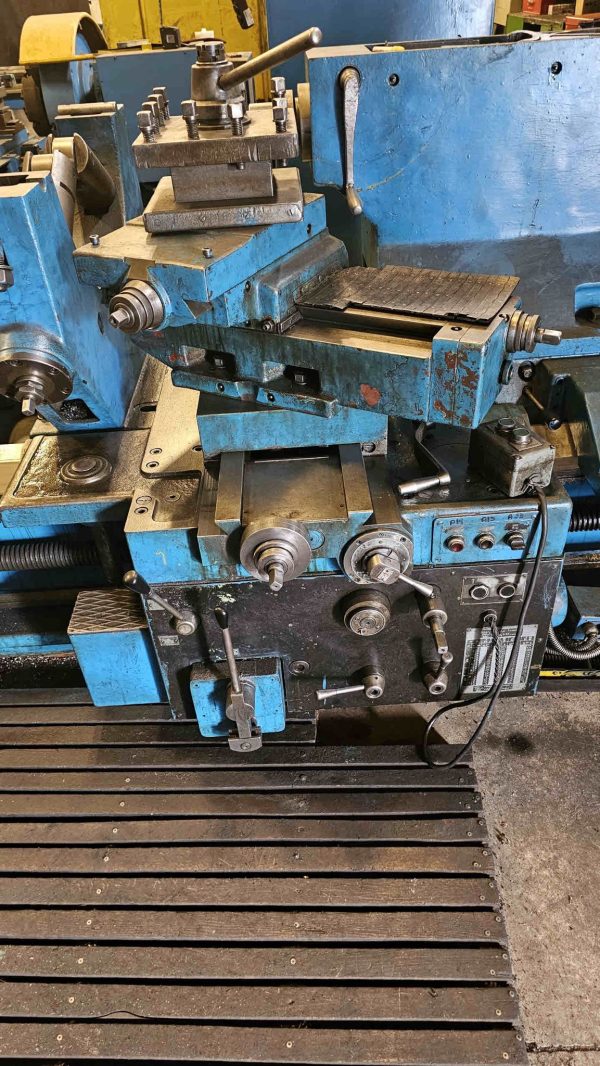

4 Post Tool Holder,
Coolant System,
Chip Trays,
