Description

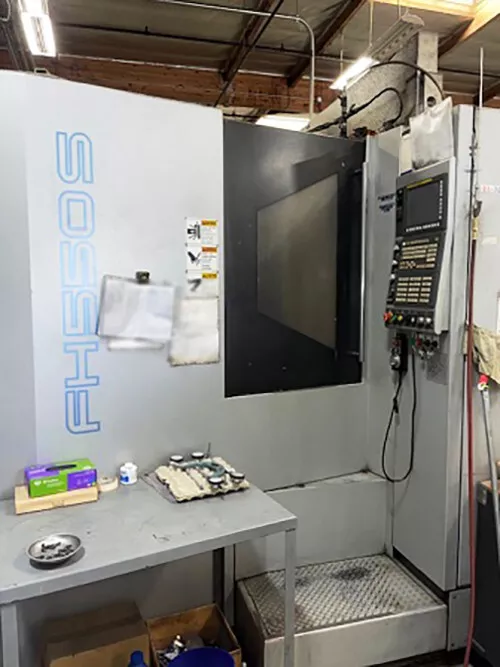

Toyoda FH-550S CNC Horizontal Machining Center – Year 2007
2 MACHINES AVAILABLE with 44 Pallets Triple Level 306 Tools on each machine
The price info is for one machine.
Latest FANUC 30i Controls
Machines are running accurate Aero Parts daily
Final price before scrapping for parts!
Customer needs space – only reason for sale
– Disassembly assistance available –
Specifications:
X-Axis Travel: 29.5″
Y-Axis Travel: 31.5″
Z-Axis Travel: 33.46″
Power 30 hp
RPM 15,000 RPM
# ATC 306 EACH
Pallet-W 21.65″
Pallet-L 21.65″
Taper CAT-50
# Axis 3
Control CNC (Fanuc 30iM)
Dimensions 118″ X 283″ X 122″H
Weight 35200 (LBS)
Equipped with:

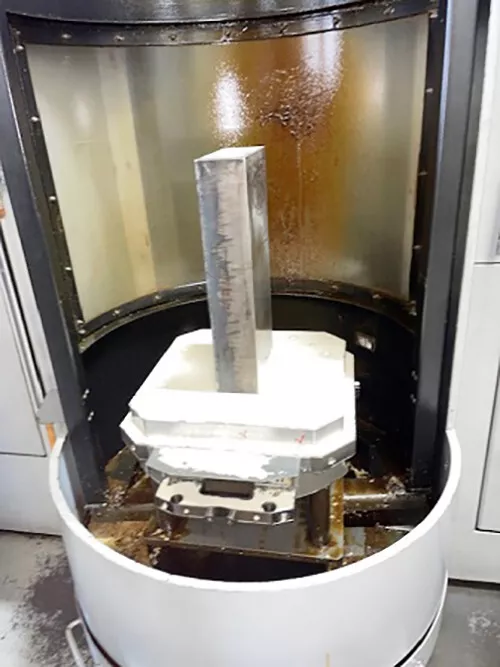

Full Rotary Tables
Part Program Memory 512 Kbyte
306 Matrix Tool Storage Mag w/ 499 Tool Offsets
1,000 PSI High Pressure System
Coolant System with Chip Conveyor
Sprindle Probe
