• TRENS SN50C – Year 2019

    Contact us for price

    Category:

    Description

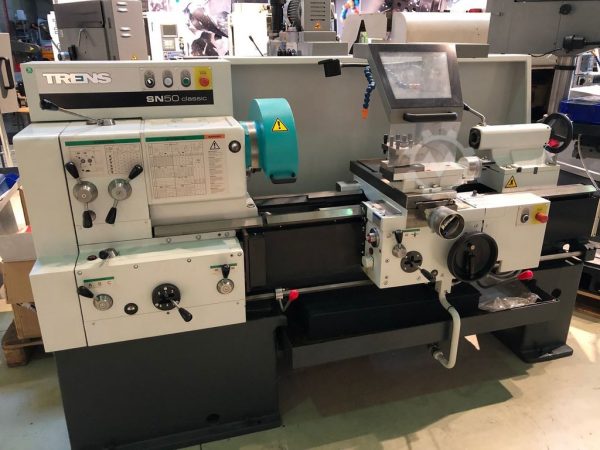

    new TRENS SN50 C lathe.
    The machine can be inspected under power

    BASIC VERSION
    – Metric version
    – Spindle end bayonet B6 (DIN 55027 & ISO 702-III)
    – Bore of the spindle Ø 52 mm
    – Four-sided tool head
    – Operating the lock case on the right
    – with fast feed
    – tailstock
    – Main engine power 4.0 kW
    – chip container + cooling
    – LED lighting
    – Power supply cable armoured hose
    – fixed handle for axis X
    – fixed handle for axle Z
    – Chuck cover Ø 200 mm with limit switch
    – CE version: front hood against chips, rear hood, lead screw protection and pull rod
    – Colour – RAL 7035-3 / 7016-3 / 6153
    – Set of change gears for thread cutting
    – Shear pin 3 pieces
    – set of tools
    – Operating manual of the machine on CD, documentation
    – fixed tip Morse 5

    On request, we can add a digital display and a Multifix holder.
    Please contact us for this.

    Technical data
    WORKSPACE:
    – Swing diameter over the machine bed: 500 mm
    – Swing diameter over the support: 270 mm
    – Swing diameter at breakout: 700 mm
    – Swing diameter in the breakout 670 mm
    – useful length of the breakout from the front of the spindle end: 230 mm
    – centre distance: 1000 mm
    – centre height above the machine bed: 250 mm
    – machine bed width: 340 mm

    SPINDLE:
    – Speed range: 22 – 2000 rpm
    – Speed steps: 24
    – Spindle end: ISO 702/III – B6 (optional ISO 702/II – D6)
    – spindle bore: 52 mm
    – Inner cone: Morse 6
    – Max. Torque / limiting speeds: 1200 Nm / 45 rpm

    SUPPORTS:
    – Working range of the cross slide: 300 mm
    – Working range of the tool slide: 140 mm
    – Max. knife dimensions: 32 x 20 mm
    – Number of feed steps: 38 mm
    – Range of longitudinal work feeds: 0.05 – 6.4 mm
    – Range of the working feeds crosswise: 0.025 – 3.2 mm
    – rapid longitudinal feed: 3000 mm/min
    – fast cross feed: 1500 mm/min
    – Swivel angle of the tool slide: +/- 90

    RIDDLER:
    – Diameter of the centre sleeve: 70 mm
    – Stroke of the center sleeve: 180 mm
    – Inner cone of the tip sleeve: Morse 5
    – transverse adjustment: +/- 12 mm

    THREADS:
    – Metric thread: 29x / 0.5 – 40 mm
    – Whitworth thread: 35x / 1 – 80 mm
    – Module thread: 26x / 0.25 – 20 mm
    – Thread Diametral Pitch: 31x / 2 – 72 DP

    DRIVES:
    – Total power consumption: 6,6 kW
    – Power of the main drive motor: 5.5 kW
    – Cooling pump capacity: 0.09 kW
    – Power of the rapid feed motor: 0.55 kW

    DIMENSIONS:
    – width x height: 1.100 x 1.580 mm
    – length/weight: 2640 mm / 1753 kg
    – voltage: 400V
