Description

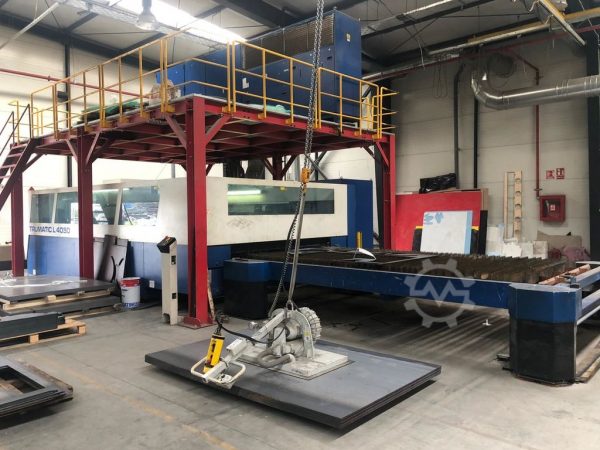

TRUMPF TC L 4050
Construction year: 2006
Working hours machine: approx. 30870
Working hours laser on: approx. 28285
Working hours beam on: approx. 9241
Laser type: TLF 6000
Laser power: 6000 Watt
Working range: 4000 x 2000 x 115 mm
Control: Siemens SINUMERIK 840 D
Max. mild steel approx.: 25 mm
Max. stainless steel approx.: 20 mm
Max. aluminum approx.: 12 mm
X max. speed: 200 m/min
Y max. speed: 200 m/min
Z max. speed: 200 m/min
X-Y max. simultaneously speed: 300 m/min
Standard equipment:
– Hi-Las high pressure cutting
– Laser cutting head with 7.5 ” lens
– Quick-change cutter head
– Automatic sheet metal outer edge detection
– APC height control and process control
– PCS Process Control System (PierceLine)
– Position laser diode
– Programable cutting gas selection / pressure setting
– Programable power cycles
– Microweld
– PMS plasma sensors (PlasmaLine)
– Sprintlas (SprintLine)
– ContourLas (ContourLine)
– AutoLas Plus (FocusLine)
– Laser power control
– Oil spray device
– Logbook function laser
– Automatic pallet changer
– Workroom lighting
– Conveyor for small parts / waste
– Multi-chamber suction
– Compact dust extractor
– Automatic switch-off
– Safety devices (light barriers)
– TFT flat screen
– ToPs 100 lite
– RJ 45 network connection
