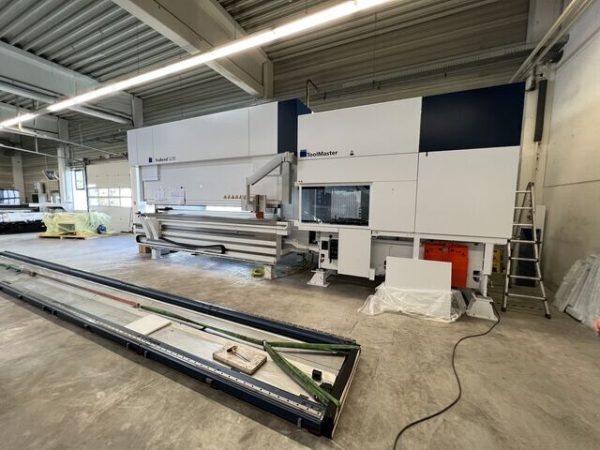

TRUMPF TruBend Cell 5230 + BendMaster 150 CNC Bending Machine 230 Tonnes – Year 2023
Manufacturer: TRUMPF
Model: TruBend Cell 5230 with BendMaster 150
Machine number: B0406I0055
Year of construction: 2023
Condition: like new (used)
Functionality: fully functional
Operating hours: 100 h
Basic machine
1 TruBend Cell 5230 (S) (B23) with BendMaster 150 (4250 mm x 2300 kN)
Standard equipment
Machine
C-frame
Press beam
Spherical bearing of the press beam with press beam inclination
Increase in installation height/stroke +230 mm
On-demand servo drive with 4-cylinder technology
Length measuring system (Y-axis) with dynamic
spring compensation
Hydraulic oil filling (lifetime filling)
Tool clamping
Hydraulic TRUMPF lower tool clamping
Hydraulic TRUMPF upper tool clamping
Craftering
CNC-controlled wedge crowning
Back stop system
Stop fingers (2 pieces)
Control
Machine control Touchpoint TruBend
Integrated TRUMPF technology data
User management system
Operation
Control unit with Foot switch
Communication rail
MobileControl
Data transfer
USB interface
RJ-45 network interface
Network capability
Central Link
Remote Support interface
Safety
Standard safety device
Rolling gate at the rear
CE marking and EC Machinery Directive
Protective fence with access door
Extended standard equipment
Control cabinet air conditioning up to ambient temperature of 40 °C
4-axis back stop (X, R, Z1 and Z2 axes) including sensors
Support arm on the right
Cell control with control panel on the right
Pneumatic lower tool shift (I axis)
Services
Installation, commissioning and instruction
1 Basic M service agreement, 1 year after the end of the warranty
Standard equipment BendMaster
Floor track
Machine
Stable base body and manipulator
Sheet sensor for contour detection
Rotary feedthrough for easy gripper change
Gripper coupling on the BendMaster
Electric drives
Double sheet detection
NC regripping station
Vacuum generation for suction grippers
Services
5 days of production support
Warranty in the first 12 months
Additional equipment
Lower tool shift
1 CNC-controlled lower tool shift (I-axis)
Safety
1 BendGuard Automatic
Roadway extension
1 Roadway extension to 10 m
Plier gripping technology
1 Sheet metal removal station with linear axis
Special options
1 Storage interface BM150
1 Lift gate
1 Mechanical and electrical interface ToolMaster (KB37)
1 Left side door for safety fence
1 Front door for safety fence
Material handling
1 Mobile spreading magnet
1 Engineering
Data transfer
1 Remote Control Interface (RCI)
Control
1 Bending technology data
Angle assistants
1 ACB Wireless (Automatically Controlled Bending)
1 ACB Laser (Automatically Controlled Bending)
Machine accessories
1 TRUMPF bending tool package (list price 40,000,-
separate specification)
Additional equipment BendMaster
Material handling
2 Gripper changing console BM150
Vacuum gripping technology
3 Vacuum grippers, dimensions are still to be defined
1 Modular vacuum gripper with separation
Plier gripping technology
1 Plier gripper
ToolMaster
Options
1 ToolMaster (KB37)
1 memory extension (4th level) (KB37)
1 roof cover (KB37)
