Description

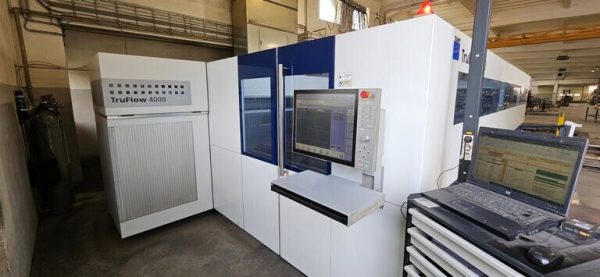

Trumpf Trulaser 3040 CNC Fiber Laser Cutting Machine 4kW – Year 2018
Manufacturer: Trumpf
Model: Trulaser 3040
Machine number: A1240A0650
Year of construction: 2018
Condition: like new (used)
Functionality: fully functional
Operating hours: 8,301 h
laser power: 4,000 W
type of input current: three-phase
sheet thickness aluminum (max.): 10 mm
working range: 4,000 mm
total length: 11,400 mm
total height: 2,400 mm
total width: 7,050 mm
workpiece weight (max.): 1,280 kg
sheet thickness steel (max.): 20 mm
overall weight: 13,000 kg
input voltage: 400 V
sheet thickness (max.): 20 mm
input current: 160 A
travel distance X-axis: 2,000 mm
travel distance Y-axis: 4,000 mm
travel distance Z-axis: 150 mm
worktable length: 4,400 mm
worktable width: 2,000 mm
compressed air connection: 6 bar
table width: 3,350 mm
space requirement width: 7,500 mm
space requirement length: 13,500 mm
space requirement height: 3,500 mm
input frequency: 50 Hz
Equipment:
cooling unit, documentation/manual, safety light barrier
Used only in one shift, every service made by Trumpf. The cahnge reason is a new machine.
