Description

TRUMPF TRUMATIC 120 Rotation – Year 1991
CNC punching machine
Power in tons 15 T
Metal length 2500 mm
CNC type Komputer PC
Metal width 1000 mm
Max steel thickness 4 mm
Length with repositioning 2000 mm
Metal width with repositioning 1000 mm
Max Punching diameter 38 mm
Number of strokes per minute 500
Max. Weight of the workpiece 64 kg
Number of tools 10
Length x width x height 3800.0 × 4599.0 × 1820.0
Weight 4300 kg

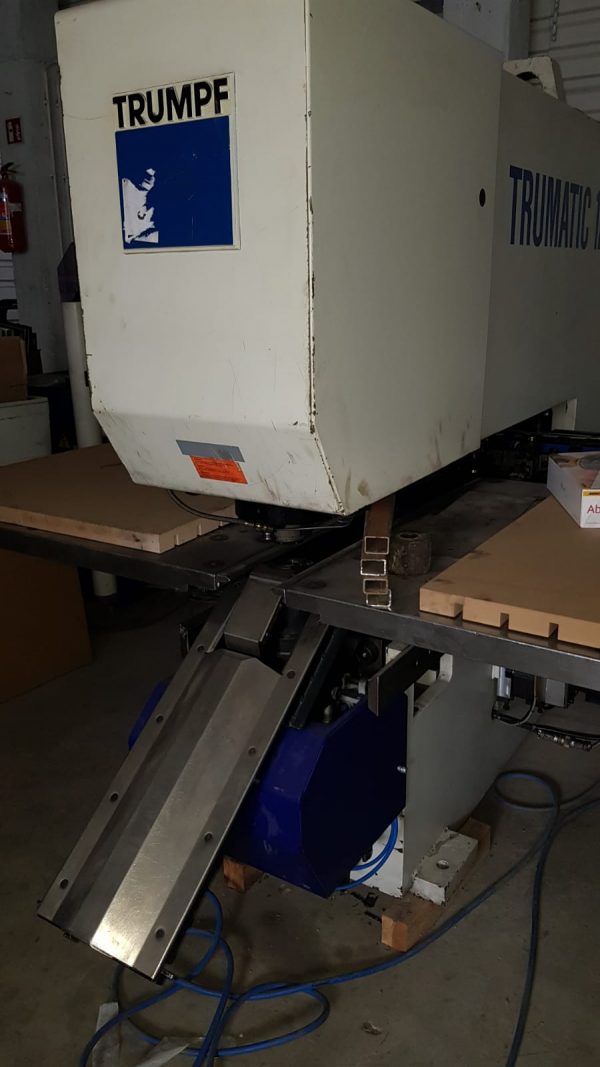

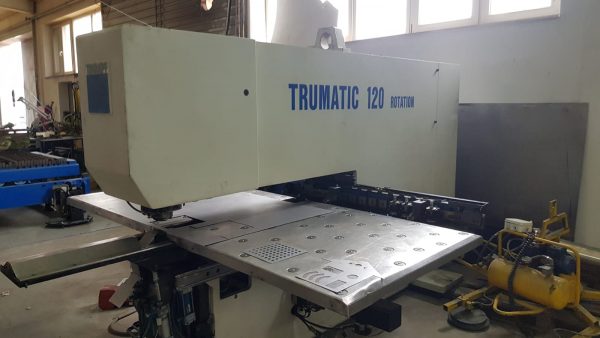

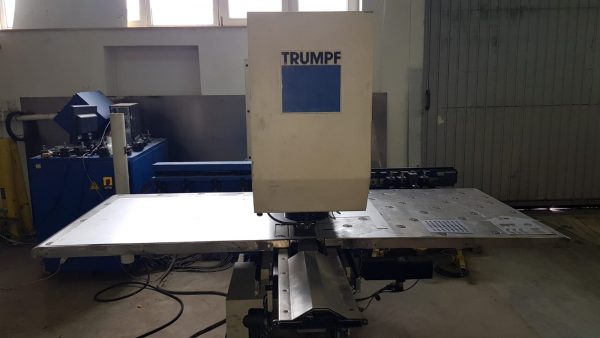

TRUMPF TRUMATIC 120 Rotation punching machine was built by the well-known German company TRUMPF in 1991. The compact sheet metal processing center enables profiling, punching and sheet forming. The CNC control of the machine uses a graphical interface to program the rotation of all tools.

Technical data of the TRUMPF TRUMATIC 120 Rotation punching machine:
Performance :
– punching force: 15 t (150 kN)
– maximum sheet thickness: 4 mm
– maximum workpiece weight: 64 kg
– maximum punching diameter: 38 mm

Speeds:
– maximum speed of a single axis: 40 m / min.
– maximum speed of two axes simultaneously (XxY): 56 m / min.
– rotary axis: 360 degrees / s, full rotation
– maximum number of strokes: 320 l / min.

Drive type:
– X / Y / Z axis: AC motors, maintenance-free
– punching: hydraulic drive

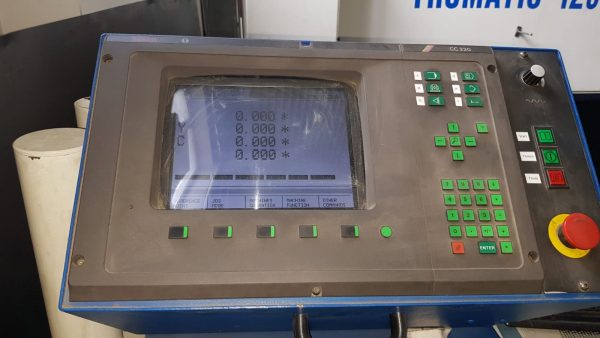

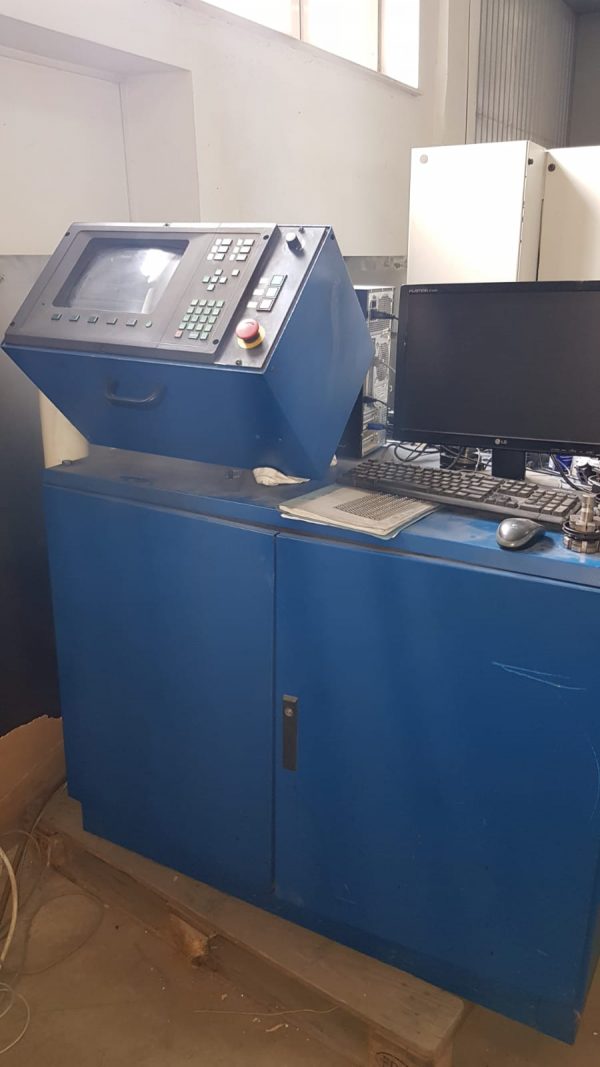

Control system: TRUMAGRAPH CC 200

Accuracy:
– the smallest programmable movement: 0.01 mm or 0.01 degrees
– position deviation, Pa: + -0.1 mm
– average positioning range, Ps: + -0.03 mm

Processing range:
– in the transverse direction (X): 1000 mm
– longitudinal direction (Y): 1000 mm
(Much larger details can be processed by repositioning and repositioning)

Automatic removal of finished details:
– up to: 500×500 mm

Automatic tool change:
– number of tool stations: 9
– time for changes: approx. 6 sec.

Connection parameters:
– connected load: 15 kVA / 50 Hz
– compressed air: 0.5 Nm3 / h-6 bar

Dimensions and weight:
– required space (length x width x height): 3800x4600x1820 mm

– weight: 4300 kg
