Description
TRUMPF Trumatic TC L3020 – Year 2006
CNC Laser Machine 3200 W
| Metal length | 3000 mm |
| Power | 3200 W |
| Metal width | 1500 mm |
| Type | CO₂ |
| Option to cut tubes | no |
| Max thickness | 20 mm |
| CNC | yes |
| CNC type | Siemens |
| Travel X | 3000 mm |
| Travel Y | 1500 mm |
| Travel Z | 115 mm |
| Max weight of the workpiece | 710 kg |
| TRUMPF Trumatic TC L3020 | |
| Worked hours | 16887 hours |
| Hours under power | 57845 hours |
Control Unit
Brand Trumpf
Main Drive
Laser power 3,2 kw
Laser type CO2
Table
Outer length 1500 mm
Outer width 3000 mm

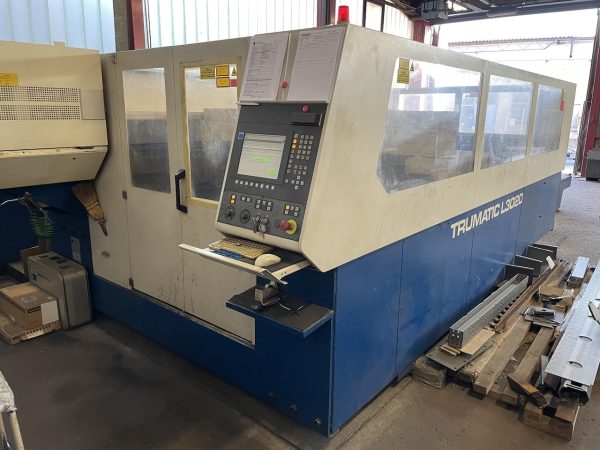

This Trumpf Trumatic L3020 Laser Cutting Machine was manufactured in the year 2006 in Germany.

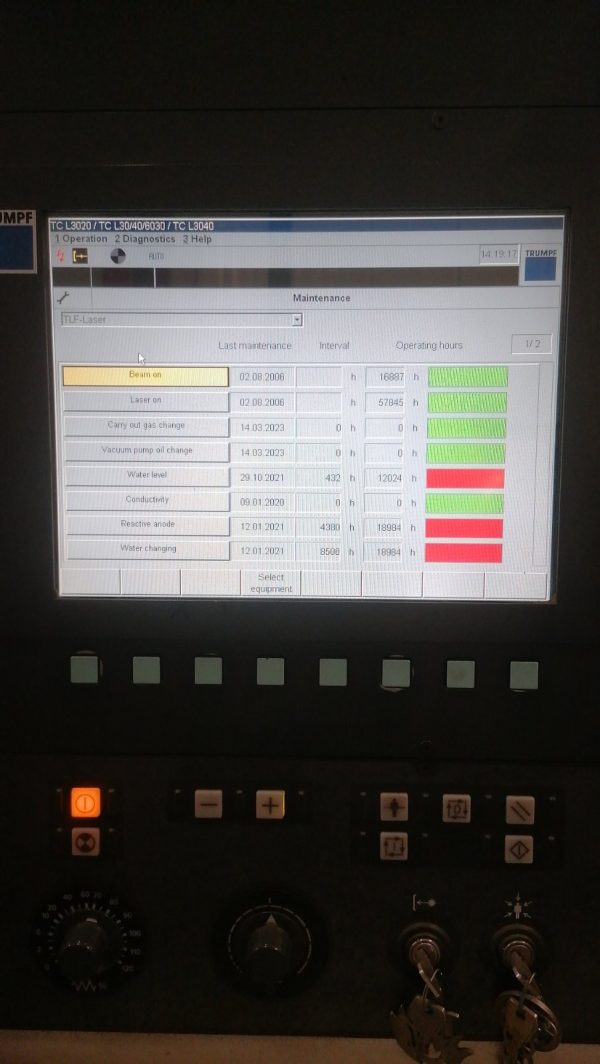

It has 57845 laser on hours, and 16887 beam on hours.
It is equipped with a control unit of the same brand.
This machine can work with a laser power of 3,2 kW.
Application Types
Laser Cutting
under power
