Description
Union TC 130 – Year 2002

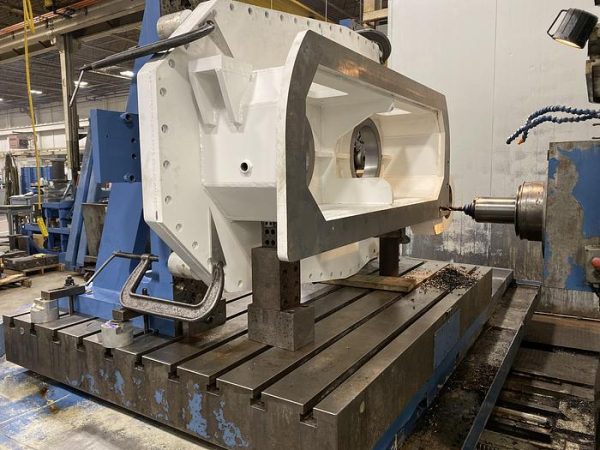

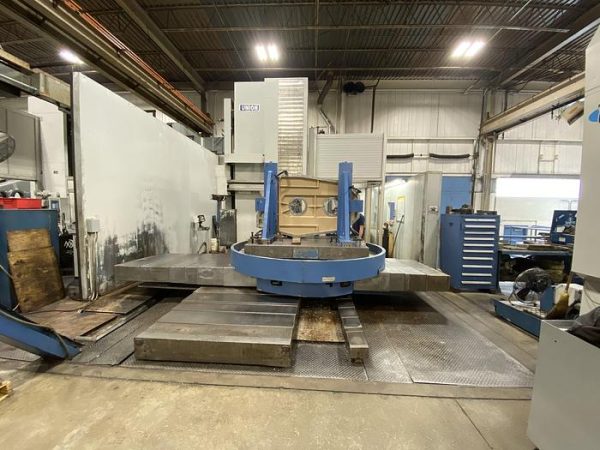

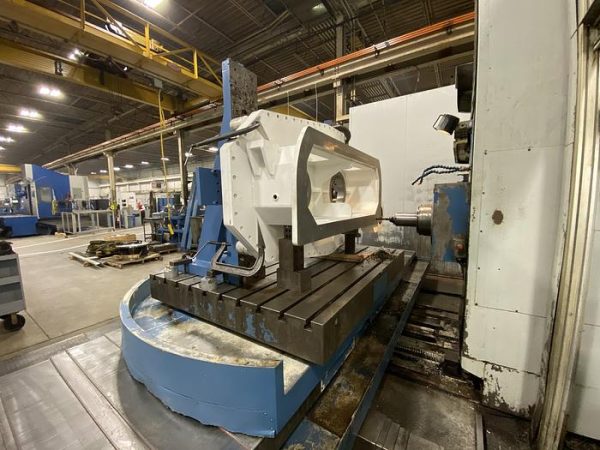

CNC Table Type Horizontal Boring Mill 2.5 Meters
Manufacturer Union
Model TC 130
Year 2002
Condition Used
Spindle diameter 5.1″
Spindle drive hp 67
Spindle speed (rpm) 5-3000 RPM
Spindle taper No 50
Table length 79″
Table width 63″
Table Load Capacity 22,000 lbs
X axis travel 98″
Y axis travel 98″
Quill travel 30″
W Axis travel 59″
Equipped with Heidenhain 426 CNC Control, Thru Spindle Coolant, 60 Tool ATC, Chip Conveyor
