Description
VDF Wohlenberg Hannover U1070S CNC Roll Lathe 8 Meters – Rebuilt 2000
Category | Lathes – Roll, Lathes – Shaft Type | |||
Manufacturer | VDF Wohlenberg Hannover | |||
Model | U1070S | |||
Serial Number | D 4330 | |||
Year | 1987, new CNC in 2000 | |||
Control | Allen Bradley 9 Series 2 Axis, Upgraded in 2000 or Optional New CNC | |||
Swing Over Bed |
45.00+* |
in |
1143 |
mm |
Swing Over Cross-slide |
45.00+* |
in |
1143 |
mm |
Distance Between Centers |
312.00 |
in |
7924.8 |
mm |
X – Cross-slide Travel |
21.00 |
in |
533.4 |
mm |
Z – Carriage Travel |
360.00 |
in |
9144 |
mm |
Turret 1 |
6 Station Automatic Programmable Sauter |
|||
Optional X2 – Cross-slide Travel |
21.00 |
in |
533.4 |
mm |
Optional Z2 – Carriage Travel |
360.00 |
in |
9144 |
mm |
Optional Swing Over Cross-slide 2 |
45.00+ |
in |
1143 |
mm |
Turret 2 |
Optional |
|||
Chuck Diameter | 32.5 | |||
Chuck Type | 4-Jaw Independent with Solid 1-Piece Jaw | |||
Spindle Bore |
5.00 |
in |
127 |
mm |
Spindle Power |
82.00 |
HP |
61.5 |
kW |
Spindle Speed | 3.55 – 710 RPM | |||
Spindle Nose | DIN 55027 | |||
Tailstock Quill Diameter |
7.88 |
in |
200.03 |
mm |
Tailstock Quill Travel |
7.88 |
in |
200.03 |
mm |
Weight Capacity Between Centers |
20000 |
lbs |
44000 |
Kg |
Rapid Traverse Rate |
236.00 |
in/min |
5994.4 |
mm/min |
Ways | Hardened and Ground | |||
Chip Conveyor | Full Length | |||
Coolant | Yes | |||
Way Covers | Cross-slide Only | |||
Power | 3 phase / 60 Hz / 440 V Existing | |||
Additional | 3 Bedway Design, 1 or 2 Carriages available, 1 or 2 CNC programmable steady rests available, CNC programmable automatic compensating steady rests to 30” dual roller pass-through
*Actual 50”+ swing |
|||
Weight |
75000 |
lbs |
34019.4 |
kg |
Condition | Excellent |

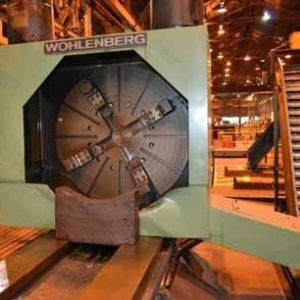

(picture is of a similar, same model machine)
