Description
VISION WIDE SF-4116 – Year 2014
X 4,100 mm
Y 1,600 mm
Z 800 mm
Power 18.5 kW
RPM 6,000 RPM
Table-W 1,500 mm
Table-L 4,000 mm

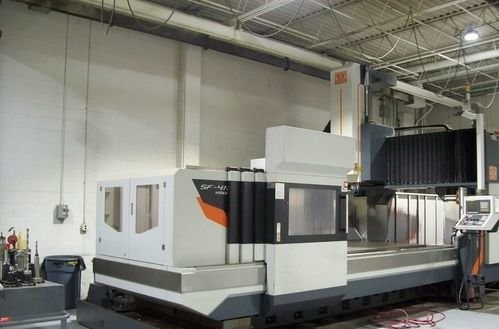

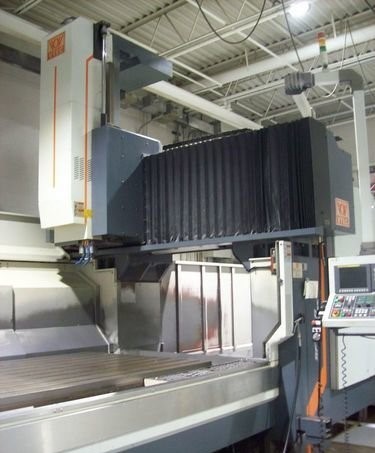

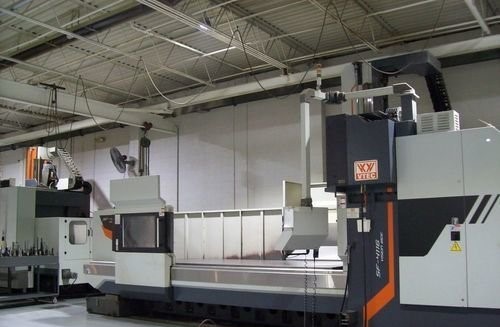

Vision Wide SF-4116 157.48″X 59.06″Table 6k Rpm 32 Tool ATC Bridgemill New 14

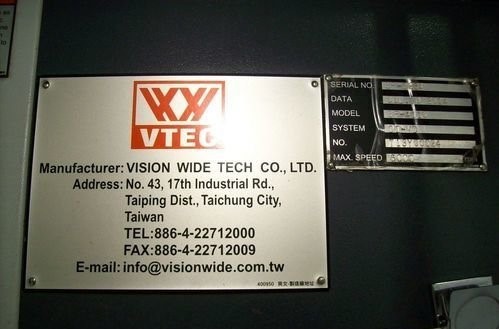

Make: Vision Wide
Model: SF-4116
Date Of Mfg: 7/2014
Controls: Fanuc Oi-MD
Table Size: 157.48″ X 59.06″
Max Table Load Capacity: 17,636 Lbs.
Max X-Axis Travel: 161.41″
Max Y-Axis Travel: 62.99″
Max Z-Axis Travel: 31.50″
Spindle Speed: 6,000 Rpm
Spindle Taper: CAT 50
Cutting Feedrate: 393 ipm
Rapid Traverse X & Y: 944 ipm
Rapid Traverse Z: 590 ipm
32 Tool ATC
2 Step Gear Spindle
Spindle ANd Gear Box Cooling System
Centralized Lube System
Air Blast Through Spindle
Manual Pulse Generator
RS 232 Interface
Twin Chip Screws On Table Side
Chip Conveyor
Flood Coolant
Full Enclosure Splash Guard
Asset In Great Overall Condition
Available Immediately
Please Note This Is A Brokered Machine And Not Located On Our Warehouse Floor
