Description
| X | 4,191 mm |
| Y | 2,286 mm |
| Z | 800.1 mm |
| Power | 22.4 kW |
| RPM | 6,000 RPM |
| Table-W | 2,032 mm |
| Table-L | 4,191 mm |
| # ATC | 40 |
| Taper | Cat#50 |
| Control | CNC (FANUC 18MB) |

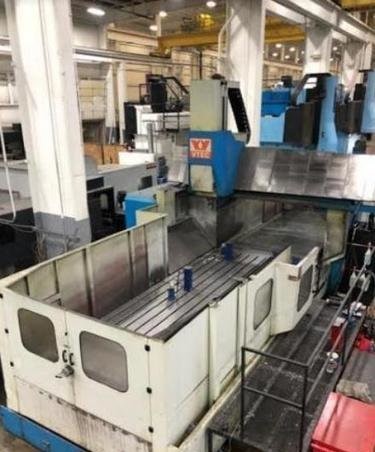

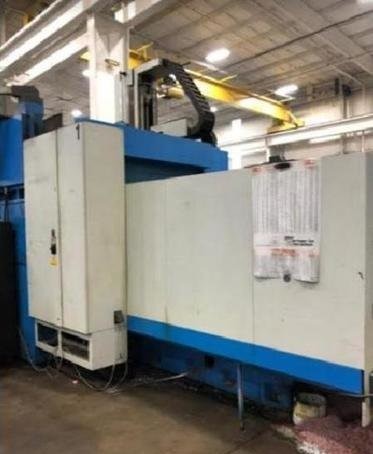

VISION WIDE V-TEC VF-4000
CNC DOUBLE COLUMN MACHINING CENTER
NEW 2006
CONTROL: FANUC 18iMB CNC CONTROL
X-AXIS, TABLE TRAVEL…………….. 165″
Y-AXIS, SPINDLE HEAD TRAVEL………. 90″
Z-AXIS, VERTICAL TRAVEL………….. 40″
DISTANCE BETWEEN COLUMNS…………. 94″
DISTANCE FROM SPINDLE NOSE TO TABLE.. 5.9″ – 42″

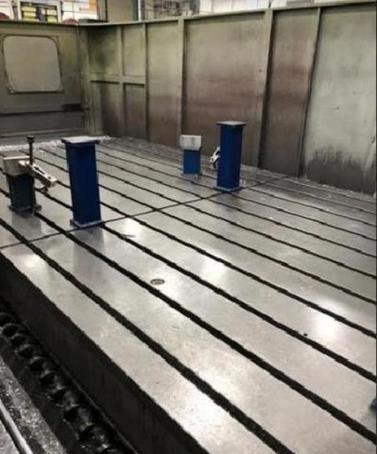

TABLE SIZE……………………… 165″ x 80.70″
TABLE LOAD …………………….. 28,660 LBS.
SPINDLE TAPER…………………… CAT #50
SPINDLE SPEEDS (GEARED) 2 SPEED …. 6000 RPM
SPINDLE MOTOR (CONT /30 MIN) 24 HP / 29 HP
VISION WIDE V-TEC VF-4000 – EQUIPPED WITH:
FANUC 18iMB CNC CONTROL
MANUAL PULSE GENERATOR (NEW)
40 STATION AUTOMATIC TOOL CHANGER
CHIP AUGERS
SPINDLE OIL COOLER
HOURS:
POWER ON TIME: 29,372
UNDER POWER
