Description

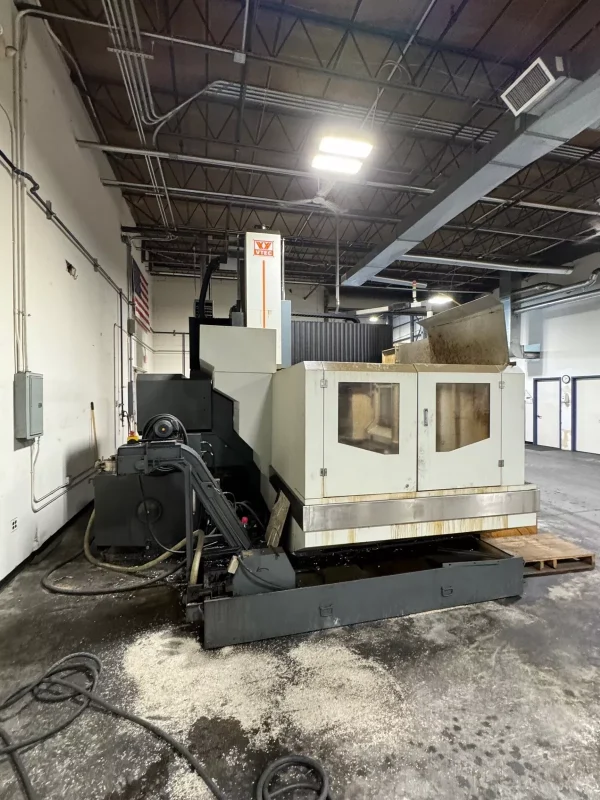

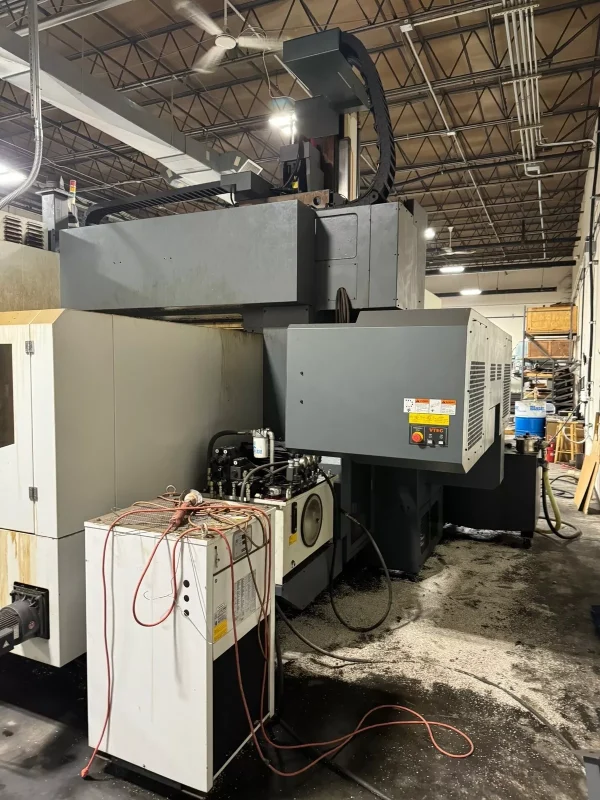

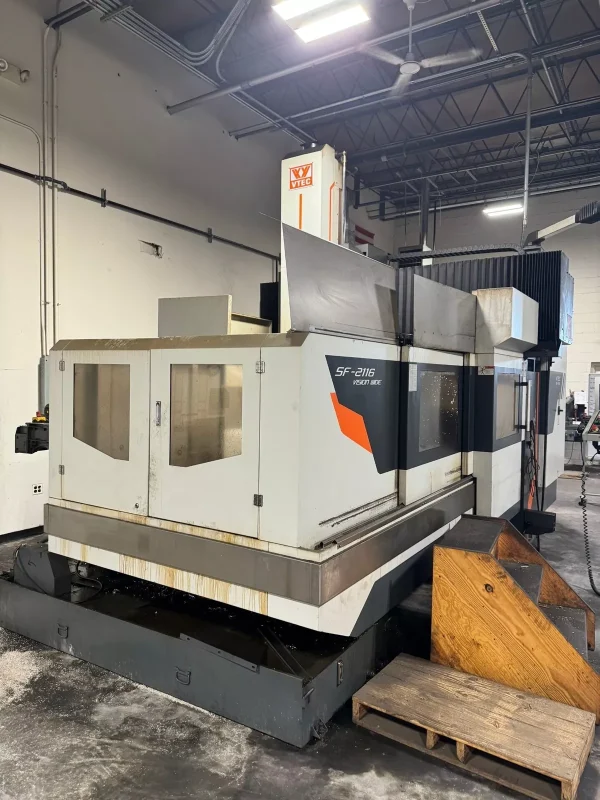

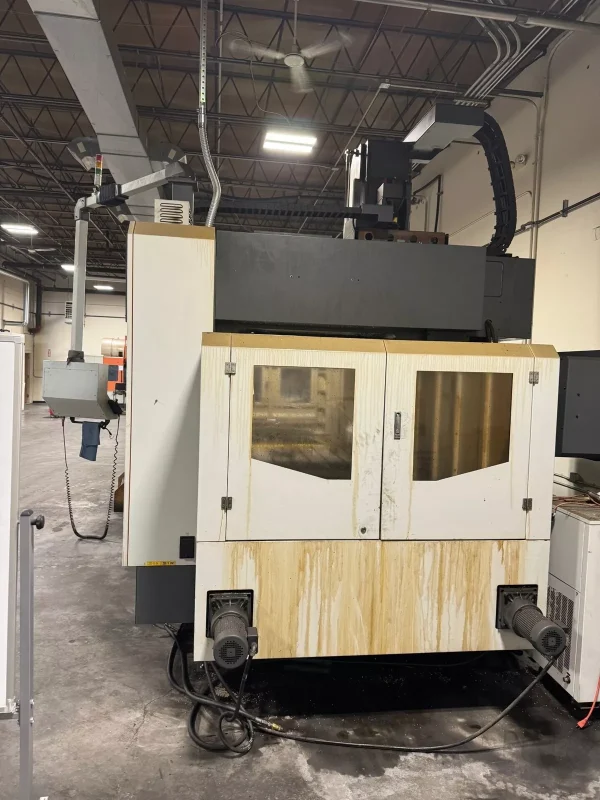

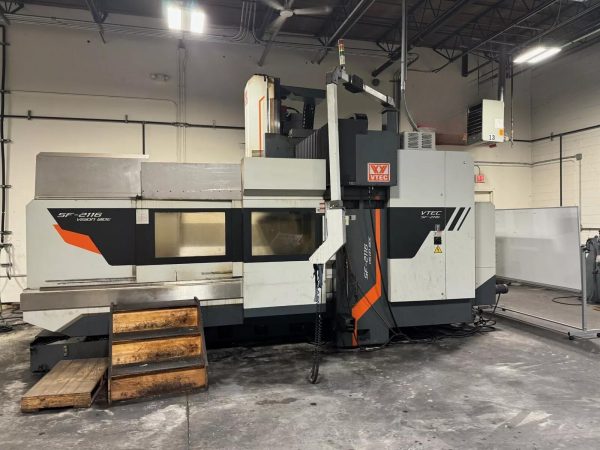

Vision Wide VTEC SF-2116 CNC Double Column Bridge Type Vertical Machining Center – Year 2013
X 83″
Y 63″
Z 31.5″
Power 35 hp
RPM 6,000 RPM
# ATC 40
Taper 50
Table-W 59″
Table-L 79″
Control CNC (Fanuc 0iMF)
Weight 49,604
Specifications
“X” axis travel 82.68″
“Y” axis travel 62.99″
“Z” axis travel (Box ways) 31.5″
Spindle center to column 17.8″
Distance between columns 66.9″
Spindle nose to table 5.9″ – 37.4″

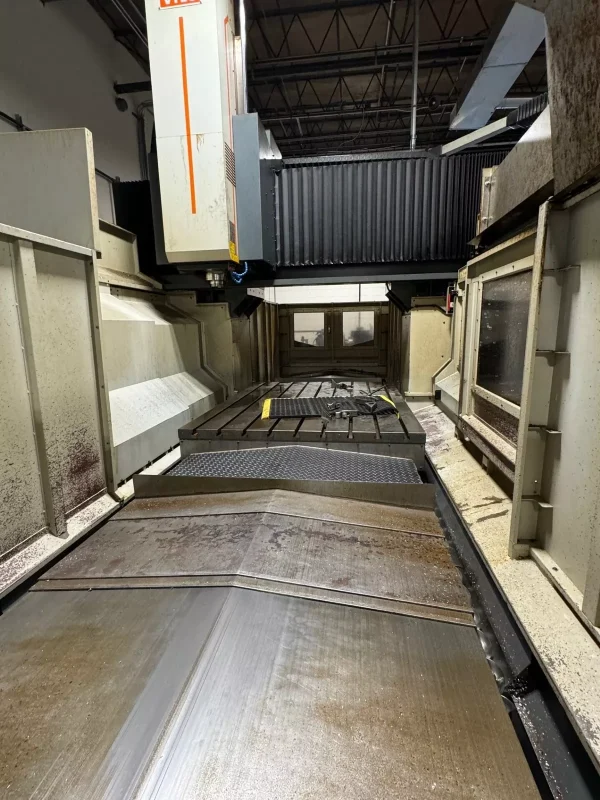

Table size 78.74″ x 59.1″
Max. table load 17,636.9 lbs. full rapid
Spindle power 35HP
Spindle speed 6,000 RPM
Speed ranges 2 Step gear
Spindle taper #50 Cat Big plus
Spindle torque 605 Ft./lbs.
Counter balance type Nitrogen assist
Spindle bearing diameter 4 Rows, 100mm
Automatic tool changer 40
Max. tool weight 39.6 lbs.
Max. tool diameter 4.92″
Max. tool diameter adj. pockets empty 7.08″
Tool change time 3 seconds
Cutting feed 393.7 IPM
Rapid travers X/Y/Z 944/787/590 IPM
Axis motors 5.4 HP
Ball screw dia. X/Y 2.48″
Ball screw dia. Z 1.97″
Axis Thrust X/Y&Z 3760/2763 KGF
Coolant capacity 120 US Gallons
Machine net weight 49,604 lbs.
Machine floor space 307″ x 210″ x 163.3″ high
Vision Wide SF-2116 CNC Bridge center w/Fanuc Oi-MF

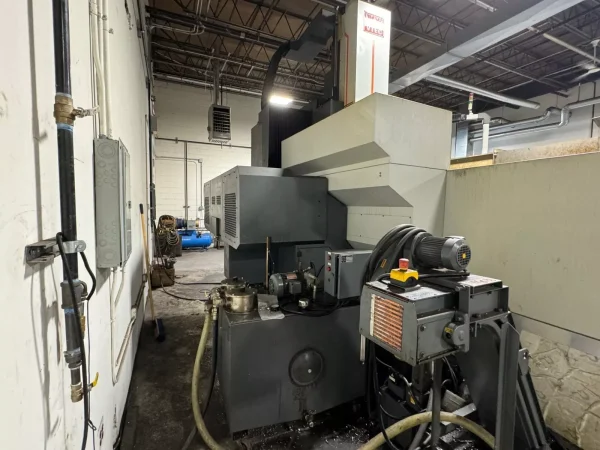

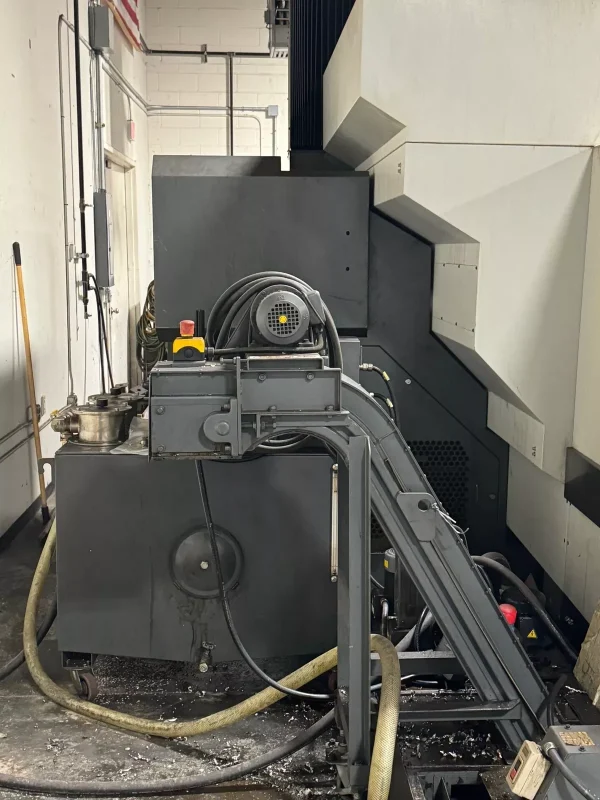

CNC bridge center, Vision Wide Heavy Duty, 66.9″ between columns, Vision wide is one of the worlds largest builders of double column/bridge type machining centers. the SF series feature Symmetrical HD columns, heavily ribbed base and headstock to reduce thermal deformation and vibration with increased rigidity and accuracy in all types of materials, All machines are equipped with 300 psi dual filter coolant through systems, dual chip augers + lift up chip conveyor, BOX “Z” axis ways and heavy duty ROLLER way design on “X” & Z”Z” axis, Hand scrapped , precision class 3 ball screws in all axis,
Equipped With
Fanuc Oi-MF control, and drives, 40ATC, AICC-II w/ 400 block look ahead, 2 gigs data server, Ethernet, 6,000 RPM, 35 HP, 2-speed geared head, Box ways “Z”, Big Plus dual contact Spindle, 300 PSI coolant through spindle, Dual augers and Chip conveyor, Manuals.
