Description

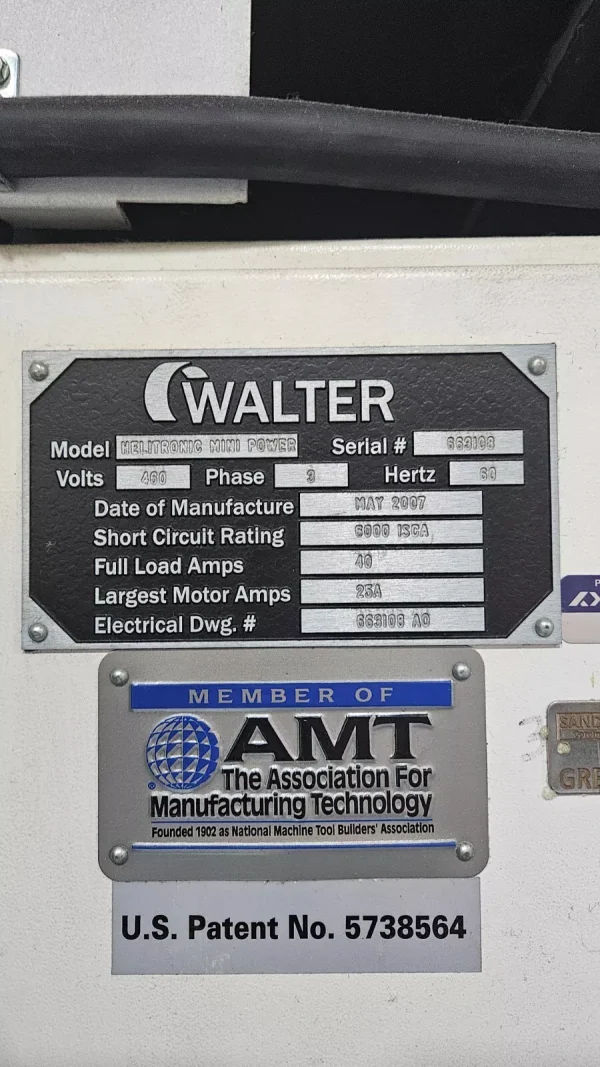

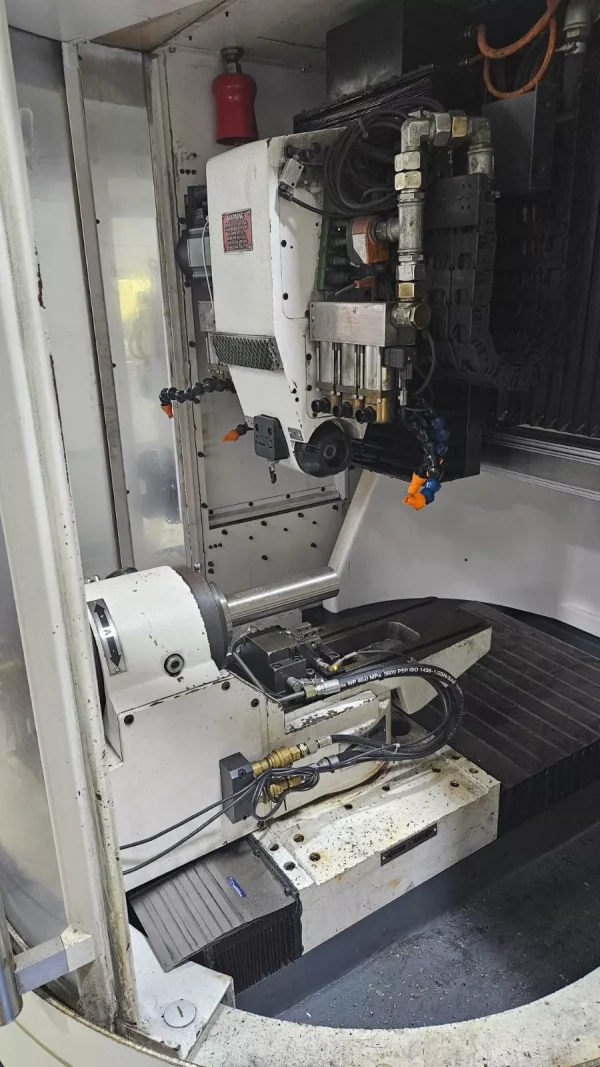

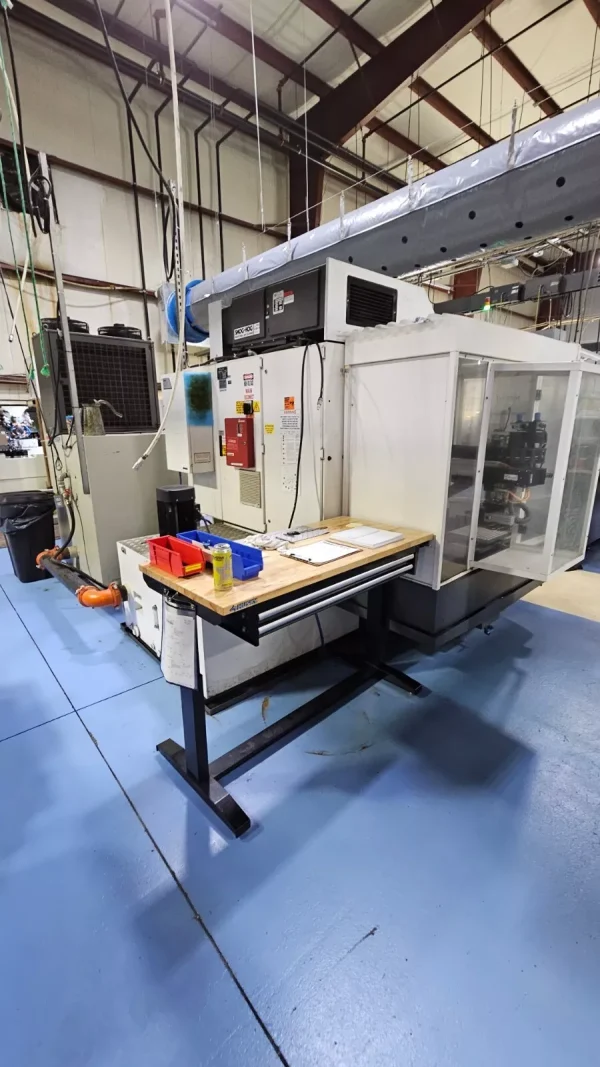

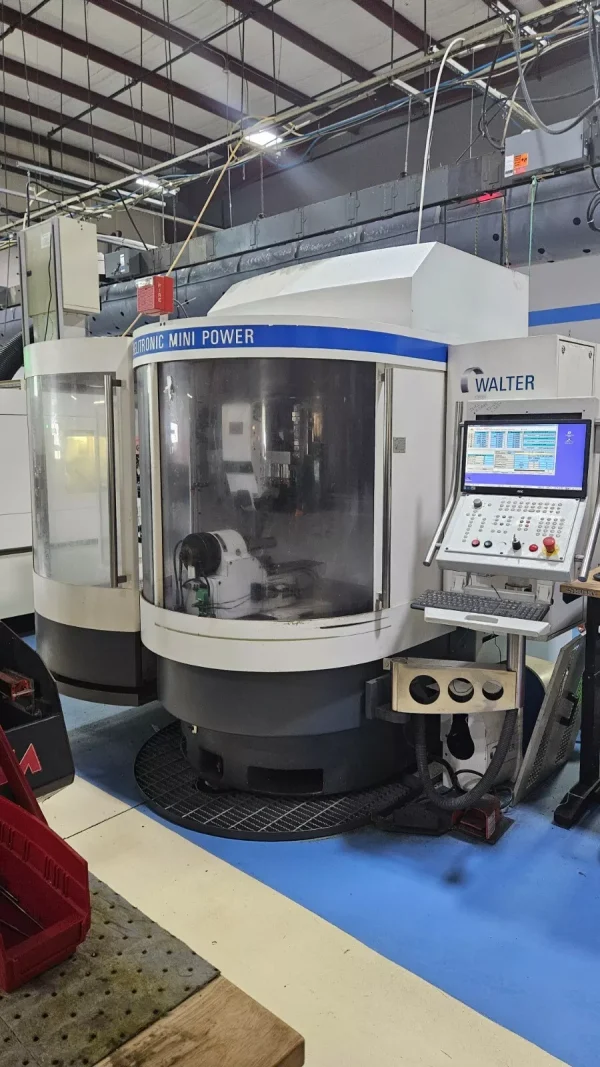

Walter Helitronic Mini Power CNC 5-Axis Tool & Cutter Grinder – Year 2007
MACHINE SPECIFICATIONS
X-Axis Travel: 320 mm
Y-Axis Travel: 200 mm
Z-Axis Travel: 470 mm
Rapid traverse speed X, Y, Z max: 15 m/min
C axis: ± 200°
Linear resolution : 0.0001 mm
Radial resolution: 0.0001°
Max. grinding wheel diameter : 150 mm
Grinding Spindle Speed: 0 – 10,500 rpm
Maximum Tool Diameter: 100 MM
Max. Workpiece Length: 255 mm
Max. workpiece length, end face grinding: 185 mm
Max. Workpiece Weight: 30 kg
Min. tool diameter: 1 mm
MACHINE EQUIPPED WITH

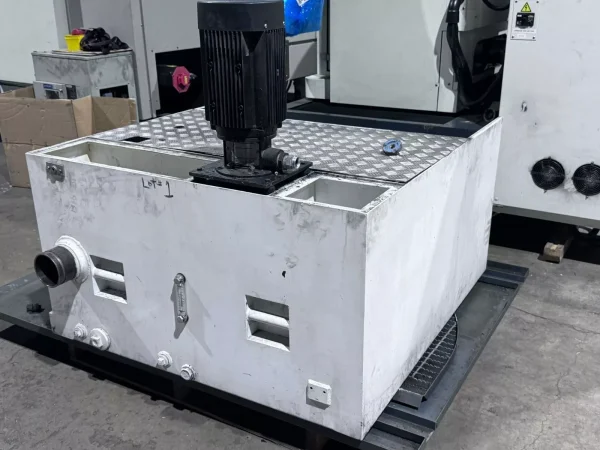

High pressure coolant
ATC

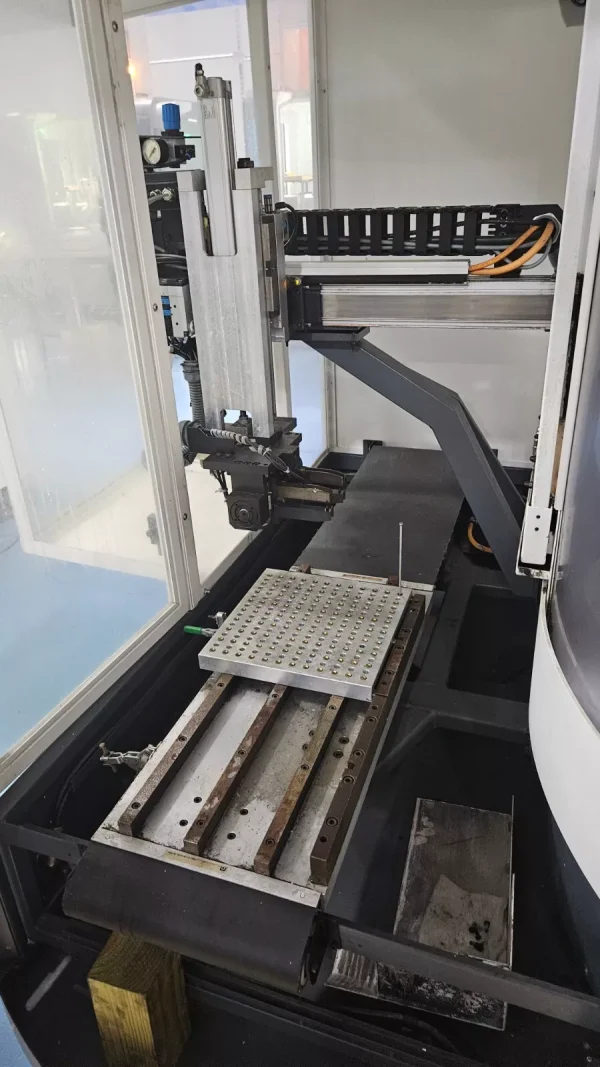

Pallet conveyer
New Y axis motor
New spindle motor and belt
Hydraulic steady rest

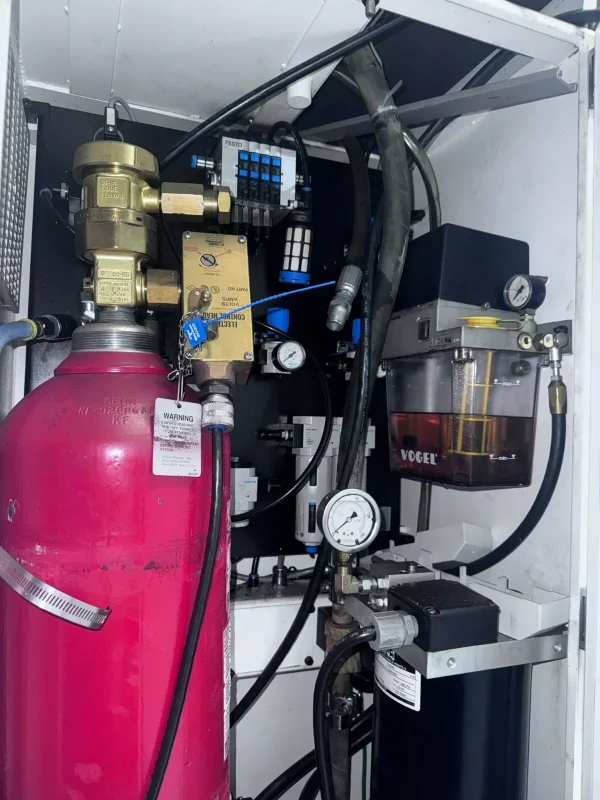

Fire suppression

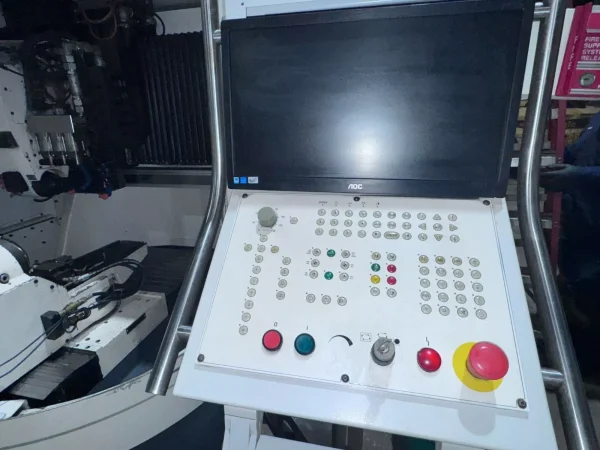

Has upgraded software with tool studio
W25 collet chuck
W20 collect chuck
4 wheel pack holders
Alignment bar and disc included
