Description

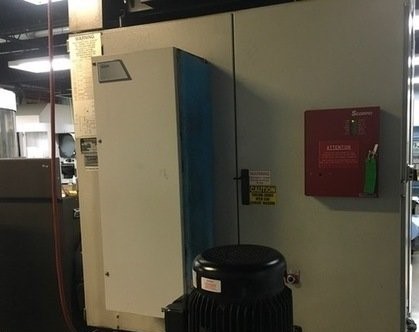

WALTER HELITRONIC POWER HMC 600 – 2004 Model
| # Axis | 5 |
| Swing | 320.04 mm |
| Centers | 370.08 mm |
| Grinding Wheel Dia. | 199.69 mm |
| Max RPM | 10,000 RPM |
| Dimensions | 2600mm x 2060mm x 2160mm high |
| Weight | 3100Kg |
| Control | CNC (HMC 600) |
EQUIPPED WITH
SPEC SHEET
Model No.: HP 600 New Date: 2004CATALOGUE SPECIFICATIONS:
(Actual must be verified) Control: HMC 600
Longitudinal Traverse (X-Axis): 480 mm / 18.90″
Vertical Traverse (Y-Axis): 320 mm / 12.6″
Cross Traverse (Z-Axis): 700 mm / 27.56″
Rotary Table Swiveling Range (C-Axis): +/- 200°
Work Head Spindle: ISO 50
Max. Diameter of Workpiece: 320 mm / 12.6″
Max. Length of Workpiece for Peripheral Grinding: 370 mm / 14.57″
Max. Length of Workpiece for Face Grinding: 320 mm / 12.6″
Precision in Linear Resolution in Radial Resolution 0.0001°
Precicion in Linear Resolution: 0.0001mm / 0.000004”
Max. Diameter Wheel: 200 mm / 7.87″
Peak Performance Grinding Spindle: 30 KW / 40 HP Grinding Spindle Speed: 0 to 10,000 RPM Power Requirement: 35KVA, 460 v, 60hz ACCESSORIES: Software Packages Automatic Fire Suppression Smart Probe Tool Measuring
