WALTER HELITRONIC POWER SL – Year 2006

Contact us for price

Category:

Description

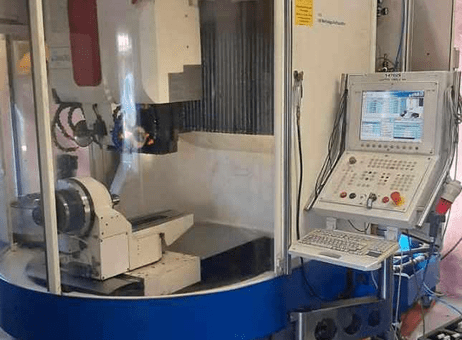

WALTER HELITRONIC POWER SL
5-axis CNC tool grinding machine was manufactured in 2006.
It is a five-axis machining center designed for the production and regeneration of various types of tools for metal and wood processing.

Technical data of the CNC universal grinder WALTER HELITRONIC POWER SL

CNC control: WALTER HMC 600 XP
5 axes
longitudinal travel (X axis): 490 mm
vertical travel (Y axis): 320 mm
transverse travel (Z axis): 660 mm
high-speed C axis: 750 RPM
rotary table rotation range (C axis): +/- 200 degrees
A axis: 750 rpm
center height with work table: 145 mm
center height without worktable: 190 mm
maximum diameter of the workpiece: 240 mm
maximum workpiece length: 370 mm
maximum wheel diameter: 200 mm
maximum efficiency: 11.5 kW
spindle speed: 0-8500 rpm
working head: ISO 50
connection power: approx. 25 kW (400 V / 50 Hz)
dimensions (L x W x H): 2170 x 2930 x 2280 mm
machine weight: approx. 4500 kg

Accessories for CNC grinding machine WALTER HELITRONIC POWER SL:
Heliflute & Cone flute calculation software
pneumatic clamping of the workpiece
stepless speed regulation
Discloader
Toolstudio Standard and Advanced 2.0, with the option of probe calibration
software package 1 cylindrical cutters
software package 2 tapered spiral cutters
software package 3 exercises and gradual exercises
4-step tools software package
software package of 6 woodworking tools
7 profile tools software package
8 twist drill software package
software package 16 warming program
software package 17 for cylindrical grinding
32 contours software package
probe
Bandfilter 400 l system
automatic central lubrication
4 grinding wheel flanges
electrostatic fog extractor

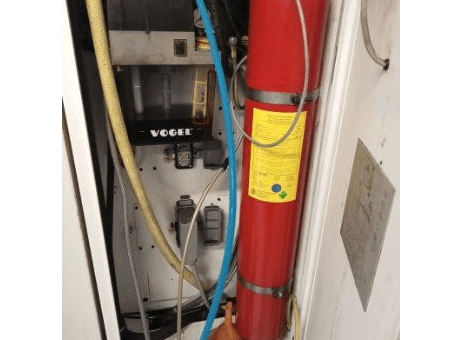

automatic fire extinguishing system
oil pan
technical protocol

CNC Yes
CNC type WALTER HMC 600 XP
Wheel diameter 200 mm
Max. wheel speed 8500 rpm
Power 11.5 kW
Length x width x height 2170.0 × 2930.0 × 2280.0
Weight 4500 kg
