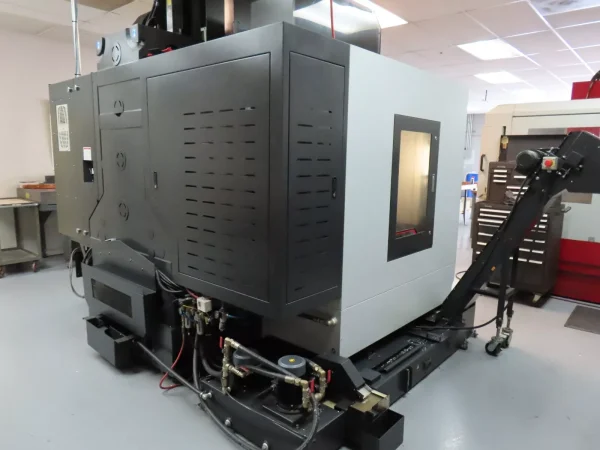

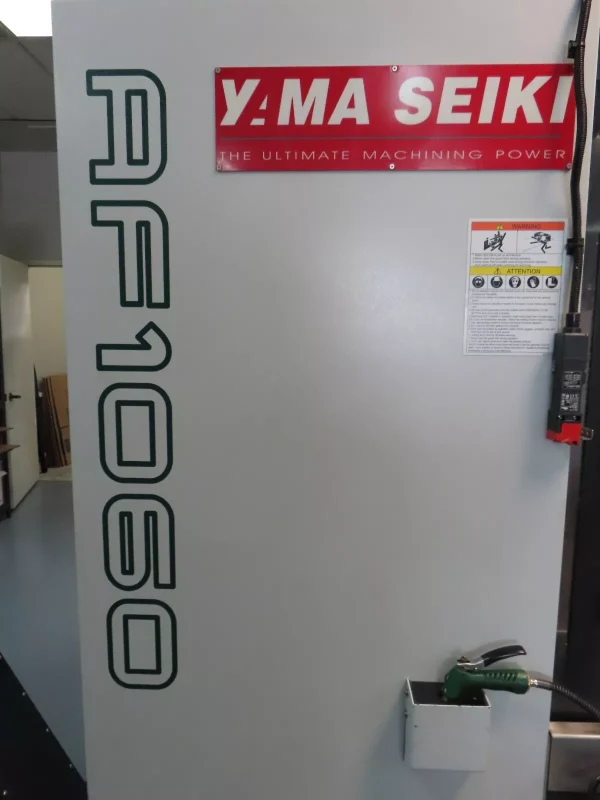

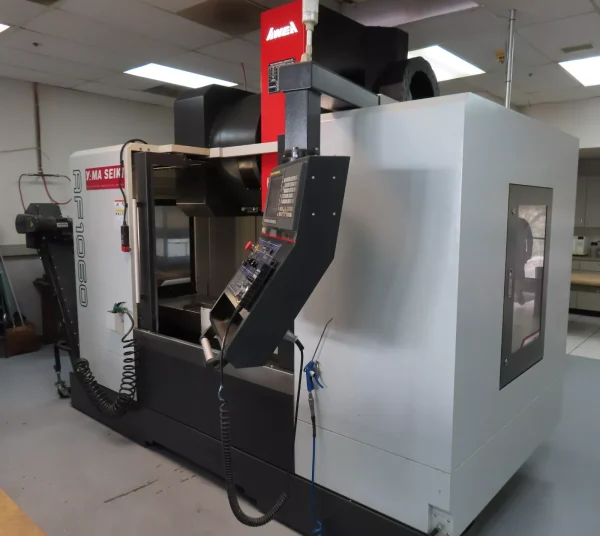

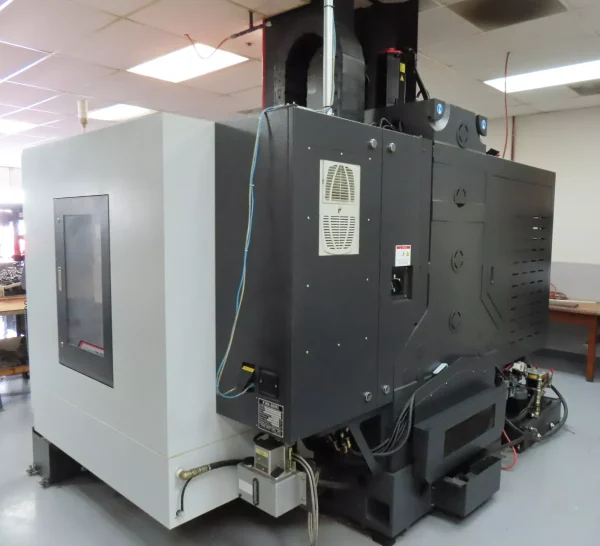

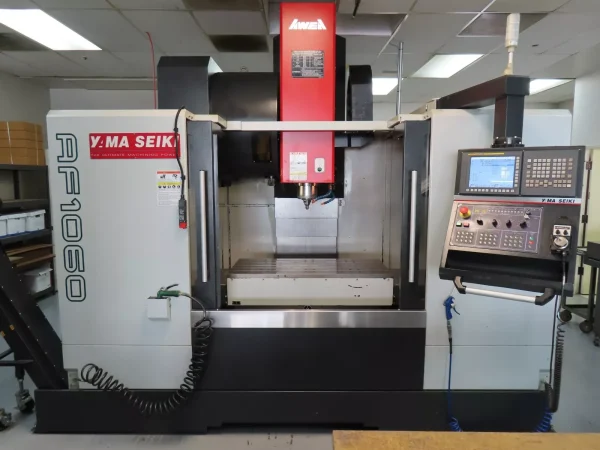

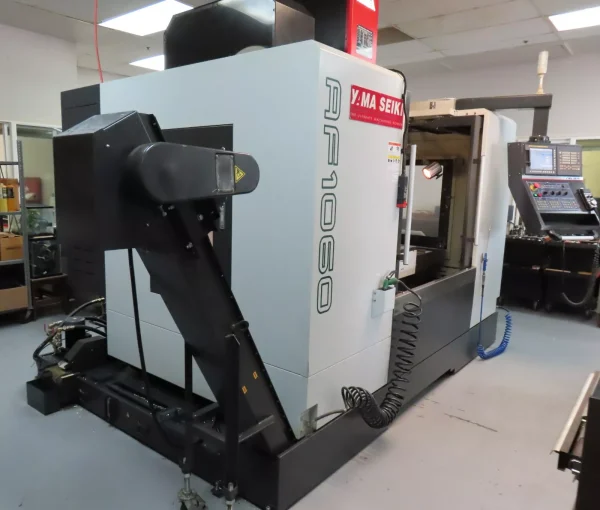

Yama Seiki (AWEA) AF1060 CNC Vertical Machining Center – Year 2017
SPECIFICATIONS:

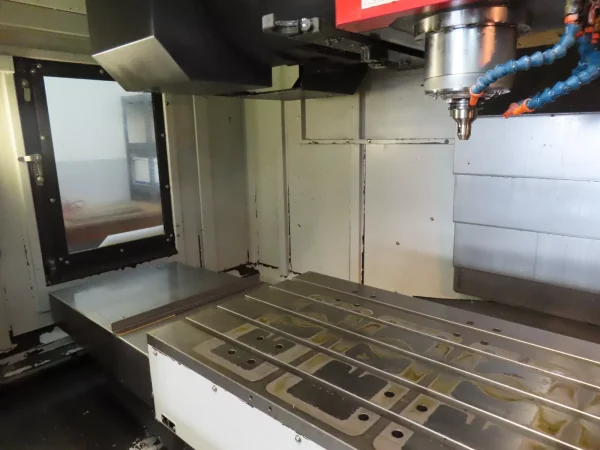

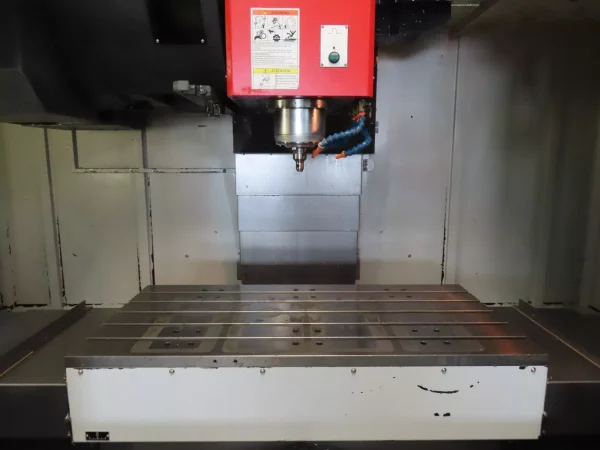

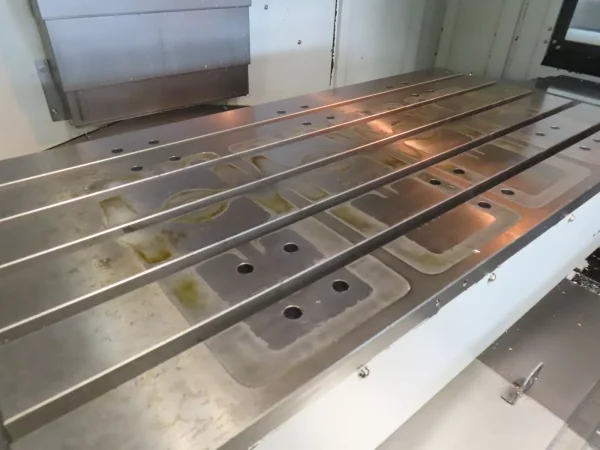

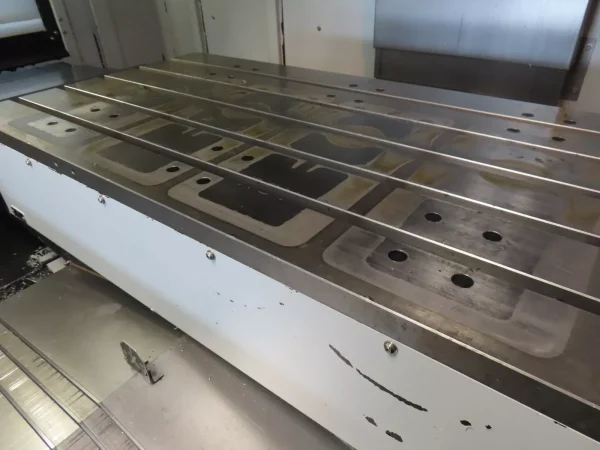

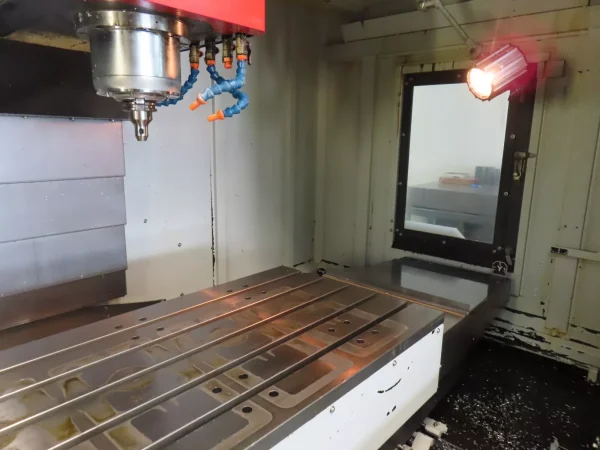

• TABLE WORKING SURFACE….. 47” x 23.6”
• TABLE LOAD CAPACITY….. 1,540 LBS.
• TRAVELS (X, Y, Z)….. 41.7” x 23.6” x 23.6”
• SPINDLE CENTER to COLUMN ….. 31.49””
• SPINDLE NOSE to TABLE TOP….. 3.93” – 27.55”
• RAPID TRAVERSE RATE, X&Y….. 1890 IPM

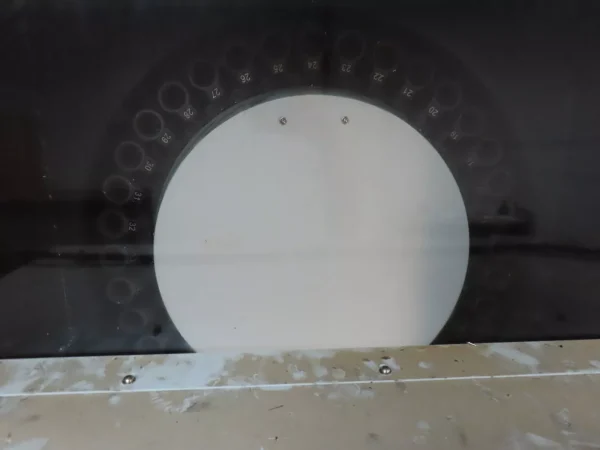

• TOOL CHANGER ARM STYLE….. 36
• TOOL CHANGE TIME….. 1.6 Sec Tool to Tool
• SPINDLE HORSEPOWER….. 40 HP (peak rating)

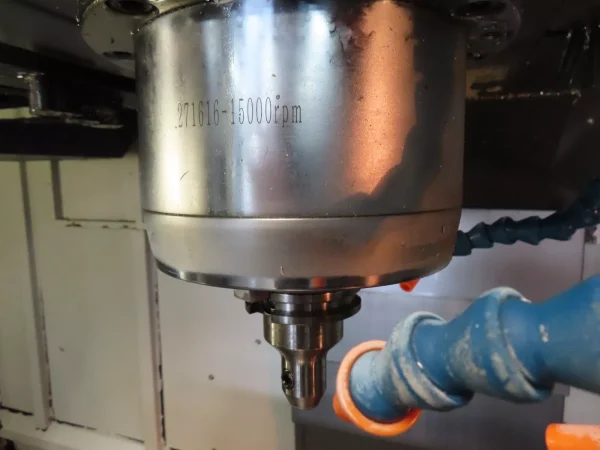

• SPINDLE SPEEDS RANGE….. 15,000 RPM (Direct Drive)
• SPINDLE TAPER….. CAT-40
• WEIGHT ……… 15,400 LBS.
EQUIPPED WITH:

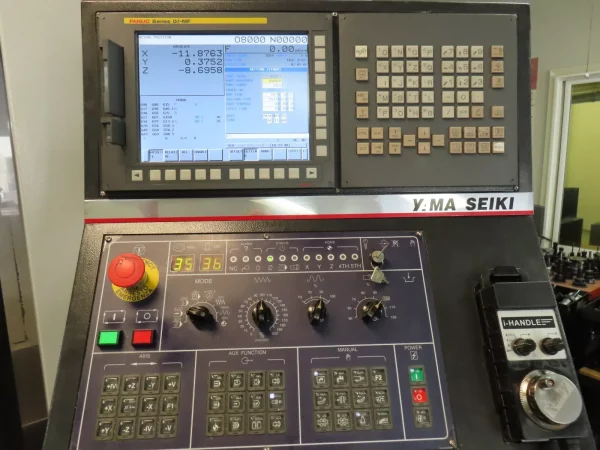

• FANUC Oi-MF with 10.4” Color LCD Monitor

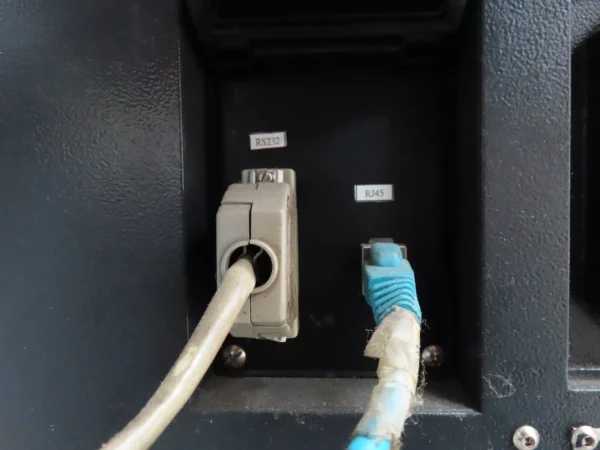

• FLASH DRIVE, RS-232 PORT, ETHERNET
• FANUC AICC with 200 Block Look Ahead
• 2MB MEMORY
• RIGID TAPPING

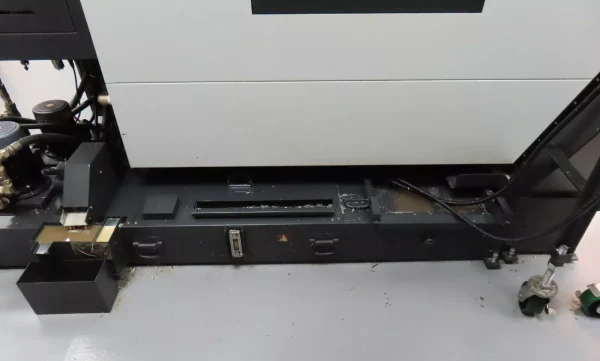

• (2) CHIP AUGERS and (1) CHIP CONVEYOR

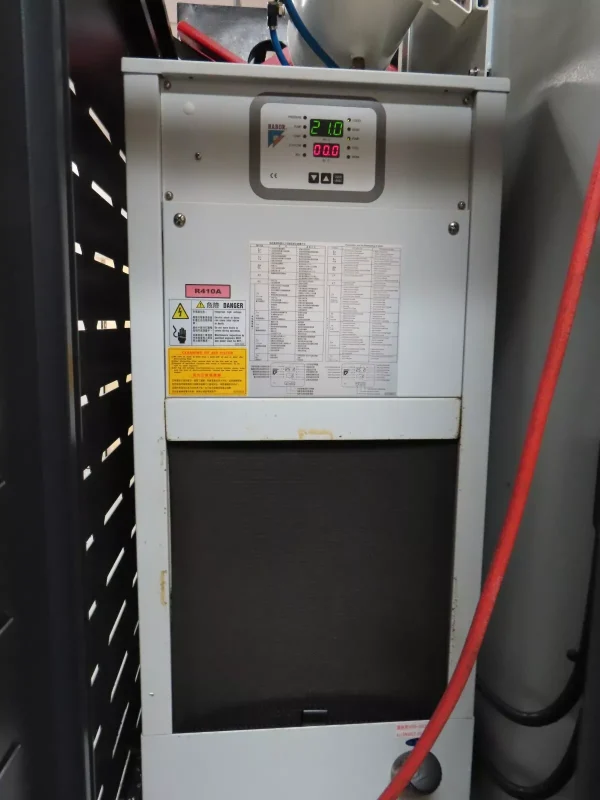

• SPINDLE OIL CHILLER

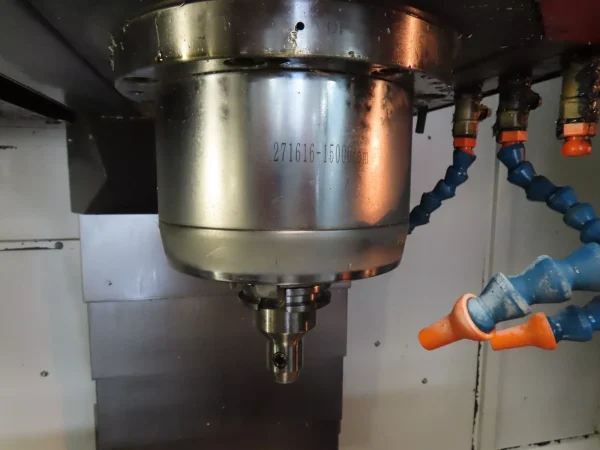

• BIG PLUS SPINDLE

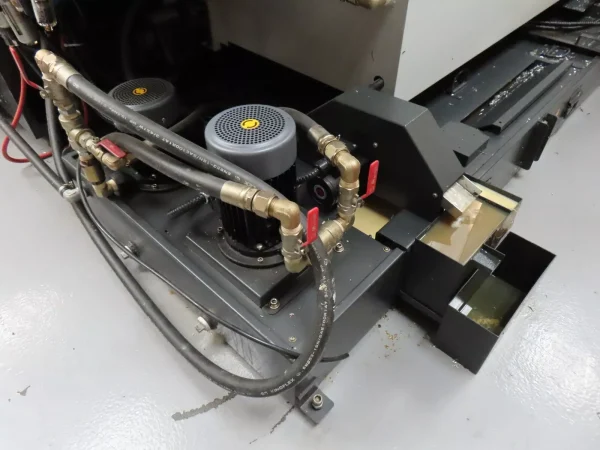

• CHIP WASH DOWN / COOLANT PUMP / OIL SKIMMER
• COOLANT THRU SPINDLE PREP FOR 1000 PSI
• 4th AXIS PRE-WIRE
• MPG (MANUAL PULSE GENERATOR) HANDWHEEL for FANUC
• HOURS: Power On: 7991 / Cut Time: 2119
LOW HOUR Vertical Machining Center with FANUC Control
15,000 RPM SPINDLE & 36 STATION TOOL CHANGER
