Description
YCM Kao Ming KMC2000SV(A) – Year 2018
CNC Double Column Machining Center
Condition : New – Open box
SPECIFICATIONS
Rotary Table / Trunnion: Wired for 4th Axis
Table / Pallet Size: 49″ x 78″”
X-Travel: 88″
Y-Travel: 55″
Z-Travel: 33″
SPINDLE
Spindle Taper Type: CAT#50
Spindle Speed: 10,000 RPM
Spindle Motor: 40 HP
Spindle Nose to Table Top: 3.93 – 37.33″
TOOL CHANGER
Tool Magazine Capacity: 40
Tool Changer Type: Arm
CONTROL
Control Make/Model: FANUC Series 0i-MODEL F CNC Control
Additional Control Options: 10.4″ TFT Screen
200 Block Look Ahead
AICC II
OPTIONS
Additional Machine Specs: Box Ways, great for heavy duty machining
59.05″ Between Columns
7.87 – 41.3″ Spindle Nose to Table
Chip Enclosure with Roofing
40 HP Upgrade
2-Speed Gear Head Transmission
Prepped for Glass Scales
Y-Axis Tiered Design
Hardened and Ground Box Ways
Axial Safety Protection
40-ATC Upgrade
Random Access Bi-Directional Magazine
Double Swing Arm Tool Changer
1.5 HP Coolant Pump
120g Coolant Tank
Oilmatic Chiller
Coolant Through Spindle Prepped

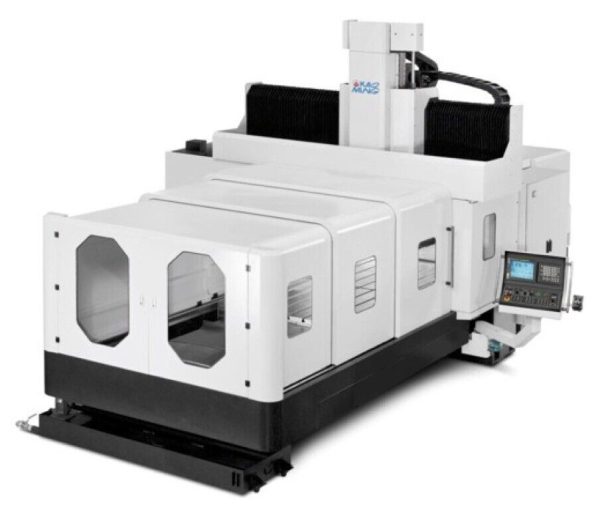

Stock Photo is representative of the machine and not from this machine specifically
Coolant Types: Flood Coolant;Thru-Spindle Coolant Ready
Chip Removal: Chip Conveyor
