Description
Zuick Daisy Wheel Tire Shredding System
Condition : New
Zuick Daisy Wheel Tire Shredding System
Tire Debeader
Function: cutting the tire beads out from truck tires
Power: 2.2kw
Processed tire: φ750-1200mm
Capacity: 2t/h
Weight: 500kg
Dimensions: 1300*900*1480mm
T1400 Belt conveyor
Function: transporting the whole car tires or truck tires with hard wires removed into tire shredder
Width: 1400mm
length: 8000mm
motor: 7.5kw

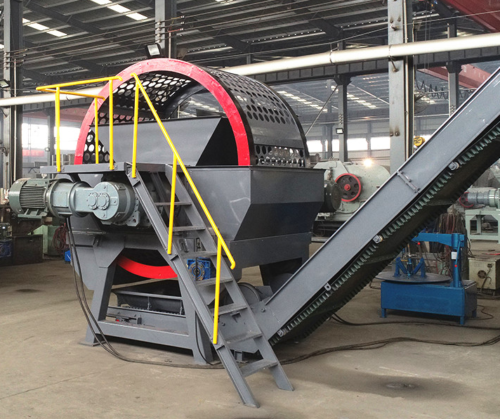

JLSS1500 Tire shredder
Function: shredding whole car tire or debeaded truck tire into 50mm rubber blocks.
Application: Combustion for oil refining, or further crushed.
Shredding chamber 1415*975mm
Motor 55kw + 55kw
Gearbox (2pcs) #13 planetary reducers
Main shaft rotary speed 9rpm
Cutter diameter: φ530mm
Blades thickness: 50mm
Blades number: 26pcs
Blades teeth: 3-teeth
Blade knife material: 55SiCr
Working capacity 4-5t/h
Weight 12500kg
Dimension(L*W*H) 4350*3220*3685mm
Note:TIRE SHREDDER-final rubber granules 50X50mm, capacity 4tph
T1200 Belt conveyor
Function: transporting rubber blocks out of tire shredder
width 1200mm
length: 8000mm
motor: 5.5kw
Includes: Integrated automatic control system for entire line.
