What is Aspherics Analysis Utility?

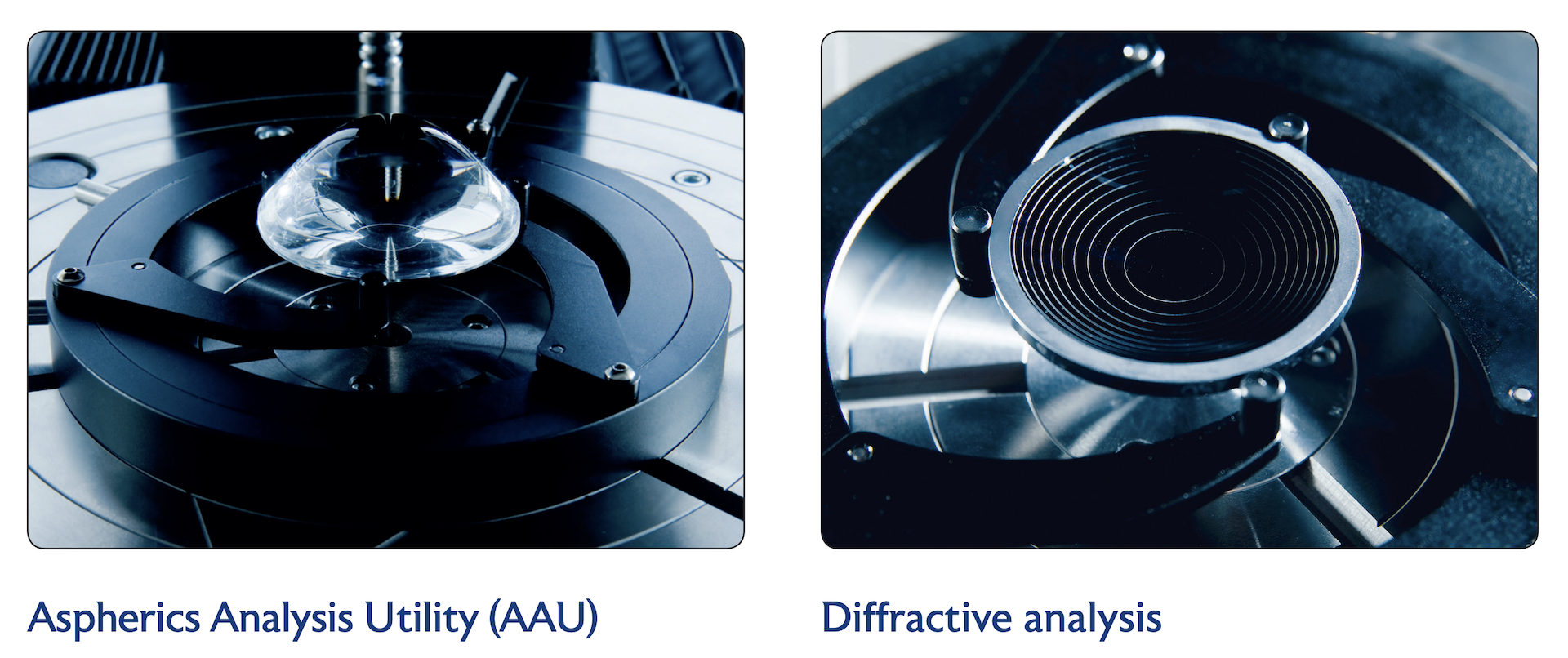

Aspherics Analysis Utility – Technical Explanation
Aspherics Analysis Utility is a metrology and computational tool used to analyze, measure, and evaluate the optical performance of aspheric surfaces. Aspheric lenses and optical components deviate from a perfect sphere, allowing them to reduce optical aberrations, improve imaging performance, and enhance focusing efficiency.
This utility is widely used in industries such as optics, photonics, aerospace, medical imaging, and semiconductor manufacturing, where precision optical elements are required.
1. What is Aspheric Surface Analysis?
An aspheric surface is an optical surface that does not conform to a perfect sphere or cylinder but follows a more complex mathematical shape. The aspheric form is typically defined by a polynomial equation or Zernike polynomials, enabling superior optical performance compared to spherical lenses.
Aspherics Analysis Utility evaluates:
- Deviation from ideal aspheric profiles
- Surface irregularities & form errors
- Wavefront distortions & aberration corrections
- Manufacturing quality & tolerance verification
2. Working Principle of Aspherics Analysis Utility
The analysis process involves precision measurement, data acquisition, and computational evaluation using advanced metrology techniques.
(a) Surface Data Acquisition (Measurement Techniques)
- Contact Profilometry (Stylus-Based)
- A high-precision stylus scans the aspheric surface to measure deviations.
- Commonly used for high-accuracy mechanical measurements.
- Optical Interferometry (Non-Contact)
- Uses laser interferometry to map surface deviations at sub-nanometer accuracy.
- Ideal for ultra-precise optics like lithography lenses and telescope mirrors.
- 3D Optical Profilometry (White Light or Confocal Scanning)
- Non-contact method that uses structured light or confocal microscopy.
- Used for quality control in semiconductors and medical optics.
- CMM (Coordinate Measuring Machine) with Optical Probes
- Uses a tactile or optical probe to measure surface geometry.
- Useful for large optical components and lens molds.
(b) Mathematical Modeling & Computational Analysis
Once surface data is collected, aspheric analysis software processes the data using:

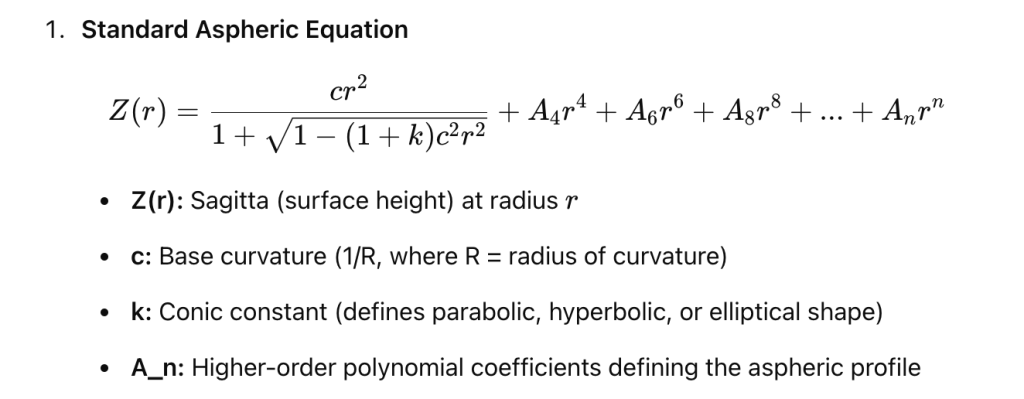

- Standard Aspheric Equation
- Z(r): Sagitta (surface height) at radius rrr
- c: Base curvature (1/R, where R = radius of curvature)
- k: Conic constant (defines parabolic, hyperbolic, or elliptical shape)
- A_n: Higher-order polynomial coefficients defining the aspheric profile
- Zernike Polynomial Analysis (Wavefront Error)
- Used for wavefront aberration analysis in precision optics.
- Helps in optimizing lens correction, adaptive optics, and laser focusing.
- Fourier Transform Analysis
- Detects surface irregularities and periodic errors in the manufacturing process.
- Used in high-performance imaging systems.
(c) Deviation & Error Analysis
The utility provides a quantitative assessment of manufacturing errors:
- PV (Peak-to-Valley) Error: Largest deviation from the ideal surface.
- RMS (Root Mean Square) Deviation: Statistical measure of surface accuracy.
- Slope Error: Measures angular deviations affecting focusing performance.
- Surface Roughness (Ra, Rq, Rz): Micron-level texture affecting optical quality.
3. Applications of Aspherics Analysis Utility
(a) Precision Optics Manufacturing
- Quality control of high-performance lenses for cameras, telescopes, and microscopes.
- Lens mold verification for plastic and glass optics.
(b) Aerospace & Defense
- Space telescope mirror analysis (e.g., James Webb Space Telescope segments).
- Laser optics calibration for high-energy defense applications.
(c) Semiconductor & Lithography
- EUV lithography lens validation for chip manufacturing.
- Silicon wafer surface analysis for photomask alignment.
(d) Medical Optics & Imaging
- Aspheric intraocular lens (IOL) verification for cataract surgery.
- Ophthalmic lens precision assessment for vision correction.
4. Advantages of Using Aspherics Analysis Utility
Ultra-High Precision: Measures nanometer-level deviations. Reduces Optical Aberrations: Helps in designing superior imaging optics. Automated Tolerance Checking: Reduces manufacturing errors. Multi-Technique Compatibility: Works with interferometry, profilometry, and CMMs. Optimized Optical Performance: Enhances lens design for VR, AR, and high-end optics.
5. Conclusion
Aspherics Analysis Utility is a high-precision metrology tool used to evaluate aspheric surfaces in optical components. It employs advanced measurement techniques (interferometry, profilometry, and computational modeling) to ensure manufacturing precision and superior optical performance. This tool is essential in industries like aerospace, semiconductor, medical optics, and advanced imaging systems.
