What is Ophthalmic Optical Coating Machine?
Ophthalmic Optical Coating Machine – Technical Explanation

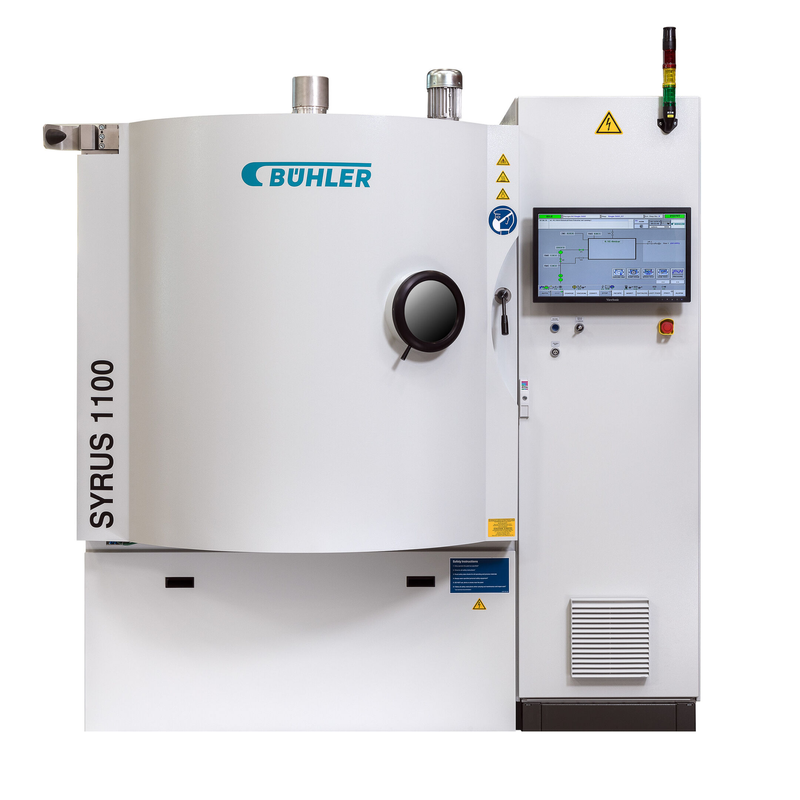

An Ophthalmic Optical Coating Machine is a specialized vacuum deposition system used to apply thin-film coatings on ophthalmic lenses. These coatings enhance optical performance by improving properties such as scratch resistance, anti-reflectivity, UV protection, and hydrophobicity.
1. Working Principle of Ophthalmic Optical Coating Machines
These machines operate using Physical Vapor Deposition (PVD) and Chemical Vapor Deposition (CVD) techniques to deposit ultra-thin coatings on lens surfaces.
a) Vacuum Chamber & Substrate Preparation
- The process begins by placing ophthalmic lenses inside a vacuum chamber to create a controlled low-pressure environment.
- The lenses are cleaned and positioned on rotating holders for uniform coating deposition.
b) Thin-Film Deposition Techniques
- Electron Beam (E-Beam) Evaporation:
- A high-energy electron beam bombards the target material (coating source), converting it into vapor.
- This vapor condenses onto the lens surface, forming a uniform thin film.
- Ion-Assisted Deposition (IAD):
- Uses ion beams to enhance adhesion and density of the coating, improving durability and optical quality.
- Plasma-Assisted Coating:
- Plasma is used to improve coating uniformity and adhesion by modifying the surface at a molecular level.
- Sputtering Deposition:
- High-energy ions eject atoms from a target material, which then settle on the lens to form a precise layer.
2. Types of Coatings Applied
Ophthalmic optical coating machines can deposit multiple layers of different coatings, including:
a) Anti-Reflective (AR) Coatings
- Reduces glare and reflections, improving clarity and contrast.
- Typically made of alternating layers of SiO₂ (Silicon Dioxide) and TiO₂ (Titanium Dioxide).
b) Hard Coatings
- Increases scratch resistance of the lens.
- Usually applied as an underlayer before AR coatings.
c) Hydrophobic & Oleophobic Coatings
- Repels water, oil, and dust, making the lens easier to clean.
- Uses Fluoropolymer-based coatings deposited through plasma-assisted methods.
d) UV Protection Coatings
- Absorbs or reflects harmful UV rays to protect the eyes.
- Magnesium Fluoride (MgF₂) and proprietary UV-blocking compounds are used.
e) Mirror Coatings
- Creates reflective surfaces for fashion or sports eyewear.
- Uses metallic thin films like Chromium (Cr) or Titanium (Ti).
3. Key Components of an Ophthalmic Optical Coating Machine
- Vacuum Chamber: Maintains a high vacuum to enable thin-film deposition.
- Rotary Lens Holders: Ensures even coating distribution.
- Electron Beam or Sputtering Source: Generates vaporized coating material.
- Ion Beam Source (For IAD): Enhances film adhesion.
- Gas Injection System: Controls plasma or reactive gases for better coating uniformity.
- Cooling & Heating System: Maintains proper temperature for precise coating application.
- Control Panel & Software: Automates process control, monitoring film thickness, and deposition rate.
4. Applications of Ophthalmic Optical Coating Machines
- Prescription Eyeglasses: Enhances vision clarity and durability.
- Sunglasses: Improves UV protection and aesthetics.
- Contact Lenses: Adds protective layers for enhanced wearability.
- Medical & Industrial Optics: Used for specialty lenses in healthcare and research.
5. Advantages of Ophthalmic Optical Coating Machines
High Precision: Capable of applying uniform coatings with nanometer-level accuracy. Durability Enhancement: Increases the lifespan of ophthalmic lenses. Multi-Layer Deposition: Can apply multiple functional coatings in a single cycle. Automated Operation: Reduces human error and improves efficiency. Eco-Friendly Options: Some machines use green technologies like plasma-assisted deposition to reduce waste.
Conclusion
Ophthalmic Optical Coating Machines are advanced vacuum deposition systems designed to enhance the performance of eyeglass lenses through high-precision coatings. Using PVD, CVD, and ion-assisted techniques, these machines apply anti-reflective, scratch-resistant, hydrophobic, and UV-protective coatings, making them essential for the ophthalmic industry.
