What is Solder Paste Inspection Machine?
Solder Paste Inspection (SPI) Machine – Technical Explanation

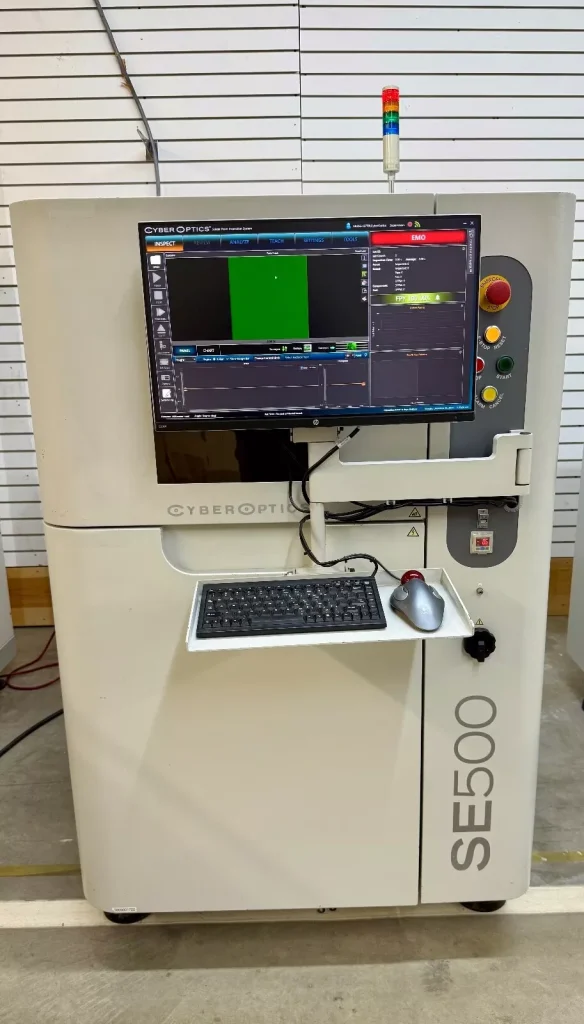

A Solder Paste Inspection (SPI) machine is a high-precision automated system used in Surface Mount Technology (SMT) manufacturing to inspect the quality of solder paste deposits on a printed circuit board (PCB) before component placement. It ensures that the solder paste application is accurate, preventing defects such as insufficient solder, bridging, or misalignment that can lead to reliability issues in electronic assemblies.
Technical Working Principle of an SPI Machine
1. Image Acquisition & 3D Scanning
SPI machines primarily use 3D Optical Profilometry to inspect solder paste deposits. The two main imaging technologies used are:
- Laser-based 3D Profiling – Measures height variations in solder paste by analyzing laser reflections.
- Structured Light Projection (Moiré Fringe/Phase-Shifted Interferometry) – Projects patterned light onto the PCB and captures images from different angles to reconstruct a 3D profile.
These methods provide high-resolution height maps to measure solder paste volume, height, area, and shape.
2. Measurement Parameters
SPI machines analyze the following key solder paste characteristics:
- Solder Paste Height (Z-Dimension)
- Ensures that the paste is neither too thin (causing weak joints) nor too thick (leading to shorts).
- Solder Paste Volume
- Measures the total paste volume per pad.
- Solder Paste Area & Shape
- Checks the XY spread of the paste to ensure correct alignment and deposition.
- Solder Paste Bridging & Offset
- Detects paste connecting adjacent pads (causing shorts) or misaligned deposits.
- Consistency & Repeatability
- Evaluates variations across multiple PCBs to maintain process stability.
3. Inspection Process
Step 1: PCB Alignment & Fiducial Recognition
- The SPI machine uses fiducial markers (reference points) on the PCB to align the inspection process with the stencil print pattern.
Step 2: 3D Scanning & Image Processing
- The system captures 3D images of each solder pad using camera sensors and compares them with a reference model.
Step 3: Automated Defect Detection
- Advanced AI algorithms and machine learning analyze height, volume, and area deviations.
- If the solder paste is outside tolerance limits, it flags the PCB for rework.
Step 4: Data Logging & Feedback Loop
- The system records all measurements and trends to optimize the solder printing process.
- SPI machines often integrate with Stencil Printing Machines via Closed-Loop Feedback to adjust settings dynamically.
Types of SPI Machines
- 2D SPI Machines (Older technology)
- Uses top-down cameras for basic paste coverage checks.
- Lacks height/depth measurement capability.
- 3D SPI Machines (Modern systems)
- Uses structured light or laser-based scanning for complete volume profiling.
- Detects height variations and volume discrepancies.
Key Benefits of SPI in SMT Manufacturing
- Prevents Defects (Reduces rework costs by catching issues early).
- Improves Yield Rate (Ensures consistent solder paste application).
- Enhances Process Control (Feedback loop with printers improves efficiency).
- Reduces Downtime (Detects process drift before major failures occur).
- Ensures High Reliability (Essential for high-quality electronic assemblies).
Leading SPI Machine Manufacturers
Conclusion
A Solder Paste Inspection (SPI) Machine is a critical quality control tool in SMT assembly, ensuring solder paste is accurately applied before component placement. With 3D scanning technology, AI-powered analysis, and real-time feedback loops, SPI machines improve manufacturing efficiency and reduce defects, leading to higher product reliability.
